306-014-421-102

Active

EDAC Inc.

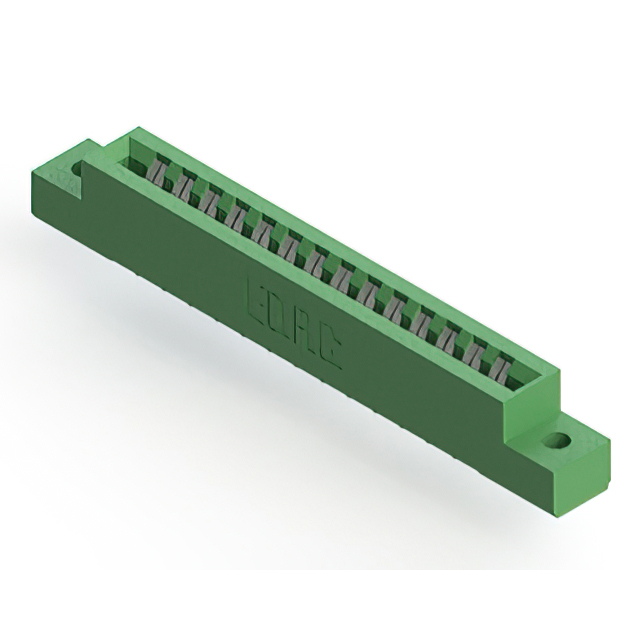

CARD EDGE CONNECTOR, 14 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

306-014-421-102

Active

EDAC Inc.

CARD EDGE CONNECTOR, 14 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-014-421-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	28
Number of Positions/Bay/Row [custom]	14
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

306-014 Series

Part	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Read Out	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Flange Feature	Contact Material	Mounting Type	Termination Rows	Card Type	Gender	Contact Finish	Material - Insulation	Number of Positions	Color	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 306-014-421-108	0.156 in	3.96 mm	14	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Solder	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Panel Mount Through Hole	1	Non Specified - Dual Edge	Female	Tin	Polyester Thermoplastic	28	Green	Cantilever
EDAC Inc. 306-014-500-107	0.156 in	3.96 mm	14	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Solder Eyelet(s)	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy		1	Non Specified - Dual Edge	Female	Gold	Polyester Thermoplastic	28	Green	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 306-014-520-108	0.156 in	3.96 mm	14	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Solder	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Panel Mount Through Hole	1	Non Specified - Dual Edge	Female	Gold	Polyester Thermoplastic	28	Green	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 306-014-520-107	0.156 in	3.96 mm	14	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Solder	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Panel Mount Through Hole	1	Non Specified - Dual Edge	Female	Gold	Polyester Thermoplastic	28	Green	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 306-014-521-104	0.156 in	3.96 mm	14	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Solder	Flush Mount Top Opening Unthreaded	Copper Alloy	Panel Mount Through Hole	1	Non Specified - Dual Edge	Female	Gold	Polyester Thermoplastic	28	Green	Cantilever	10 Áin	0.25 Ám	3.96 mm	0.156 in
EDAC Inc. 306-014-520-168	0.156 in	3.96 mm	14	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Solder	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Panel Mount Through Hole	1	Non Specified - Dual Edge	Female	Gold	Polyester Thermoplastic	28	Green	Cantilever	10 Áin	0.25 Ám			Card Guides
EDAC Inc. 306-014-500-168	0.156 in	3.96 mm	14	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy		1	Non Specified - Dual Edge	Female	Gold	Polyester Thermoplastic	28	Green	Cantilever	10 Áin	0.25 Ám			Card Guides
EDAC Inc. 306-014-421-102	0.156 in	3.96 mm	14	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Solder	Flush Mount Top Opening Unthreaded	Copper Alloy	Panel Mount Through Hole	1	Non Specified - Dual Edge	Female	Tin	Polyester Thermoplastic	28	Green	Cantilever			3.25 mm	0.128 "
EDAC Inc. 306-014-421-158	0.156 in	3.96 mm	14	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Solder	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Panel Mount Through Hole	1	Non Specified - Dual Edge	Female	Tin	Polyester Thermoplastic	28	Green	Cantilever					Card Guides
EDAC Inc. 306-014-420-104	0.156 in	3.96 mm	14	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Solder	Flush Mount Top Opening Unthreaded	Copper Alloy	Panel Mount Through Hole	1	Non Specified - Dual Edge	Female	Tin	Polyester Thermoplastic	28	Green	Cantilever			3.96 mm	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 10.49
Newark	Each	25	$ 17.18
		50	$ 16.62
		100	$ 15.52
		250	$ 14.96
		500	$ 14.13

Description

General part information

306-014 Series

28 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
