19363 010250

Active

Belden Inc.

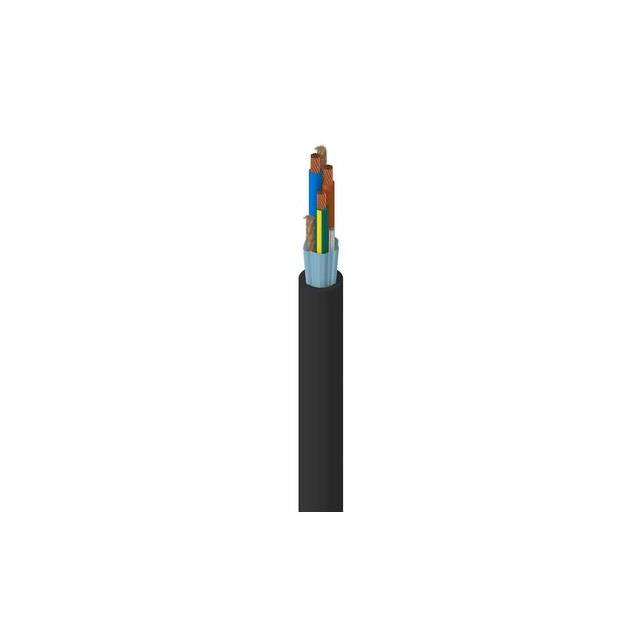

CABLE 3COND 16AWG BLACK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 16AWG BLACK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	19363 010250

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	34 AWG
Conductor Strand [custom]	65
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.365 in
Jacket (Insulation) Diameter [diameter]	9.27 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.194 mm
Jacket (Insulation) Thickness	0.047 in
Jacket Color	Black
Length	3000 "
Length	76.2 m
Number of Conductors	3
Ratings	UL Style SJT
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Cord and Cordset
Voltage	300 V
Wire Gauge	16 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Length	Length	Conductor Material	Wire Gauge	Shield Type	Features	Cable Type	Number of Conductors	Usage	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Voltage	Jacket (Insulation) Material	Shield Material	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 19363 010250	34 AWG	65	Poly-Vinyl Chloride (PVC)	3000 "	76.2 m	Copper Bare	16 AWG	Foil	Drain Wire	Multi-Conductor	3	Cord and Cordset	UL Style SJT	0.365 in	9.27 mm	Black	300 V	Poly-Vinyl Chloride (PVC)	Aluminum	100 %	1.194 mm	0.047 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 6.49

General part information

3 Conductor Multi-Conductor Cable Black 16 AWG Foil 250.0' (76.2m)
