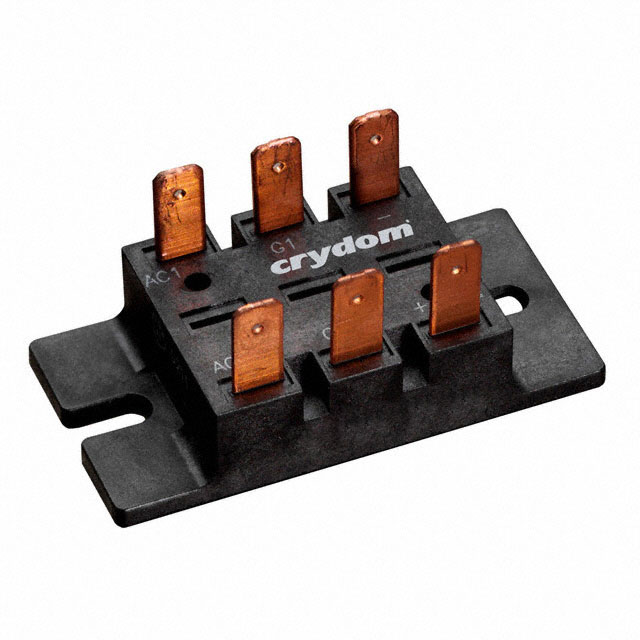

B612FSE-2T

Active

Sensata-Crydom

MOD DIODE SCR 42.5A 240V .250"QC

Search across all available documentation for this part.

Active

Sensata-Crydom

MOD DIODE SCR 42.5A 240V .250"QC

Technical Specifications

Parameters and characteristics for this part

Specification	B612FSE-2T

Current - Gate Trigger (Igt) (Max) [Max] [custom]	80 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	600 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes [custom]	2
Number of SCRs, Diodes [custom]	2
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	Bridge, Single Phase - SCRs/Diodes (Layout 1)
Voltage - Off State	600 V

Part	Package / Case	Mounting Type	Structure	Current - Gate Trigger (Igt) (Max) [Max] [custom]	Number of SCRs, Diodes [custom]	Number of SCRs, Diodes [custom]	Voltage - Off State	Operating Temperature [Min]	Operating Temperature [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)
Sensata-Crydom B612FSE-2T	Module	Chassis Mount	Bridge Single Phase - SCRs/Diodes (Layout 1)	80 mA	2	2	600 V	-40 °C	125 ¯C	600 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR Module 600 V Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module
