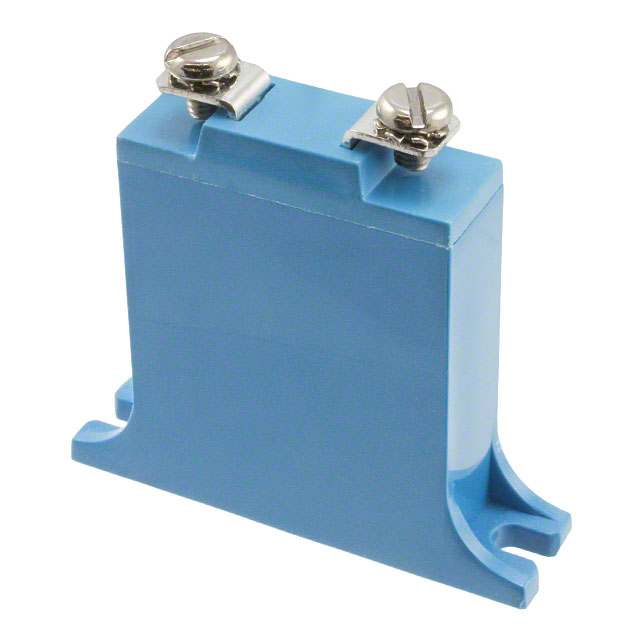

B72232B0381K001

Active

EPCOS - TDK Electronics

VARISTOR 620V 25KA ENCASED DISC

Search across all available documentation for this part.

Active

EPCOS - TDK Electronics

VARISTOR 620V 25KA ENCASED DISC

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Maximum AC Volts [Max]	Maximum DC Volts [Max]	Varistor Voltage (Typ)	Varistor Voltage (Max) [Max]	Number of Circuits	Capacitance @ Frequency	Package / Case	Energy	Varistor Voltage (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Maximum AC Volts	Varistor Voltage (Max)
EPCOS - TDK Electronics B72232B0681K001	Chassis Mount	680 V	895 V	1.1 kV	1.21 kV	1	830 pF	Encased Disc	760 J	990 V	85 °C	-40 °C
EPCOS - TDK Electronics B72232B0381K001	Chassis Mount		505 V	620 V		1	1400 pF	Encased Disc	550 J	558 V	85 °C	-40 °C	385 V
EPCOS - TDK Electronics B72232B0251K001	Chassis Mount	250 V	320 V	390 V	429 V	1	2200 pF	Encased Disc	330 J	351 V	85 °C	-40 °C
EPCOS - TDK Electronics B72232B0131K001	Chassis Mount	130 V	170 V	205 V		1	11000 pF	Encased Disc	210 J	184.5 V	85 °C	-40 °C		225.5 V
EPCOS - TDK Electronics B72232B0151K001	Chassis Mount	150 V	200 V	240 V	264 V	1	3700 pF	Encased Disc	240 J	216 V	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

620 V 25 kA Varistor 1 Circuit Chassis Mount Encased Disc
