74HC138S16-13
ActiveDiodes Inc

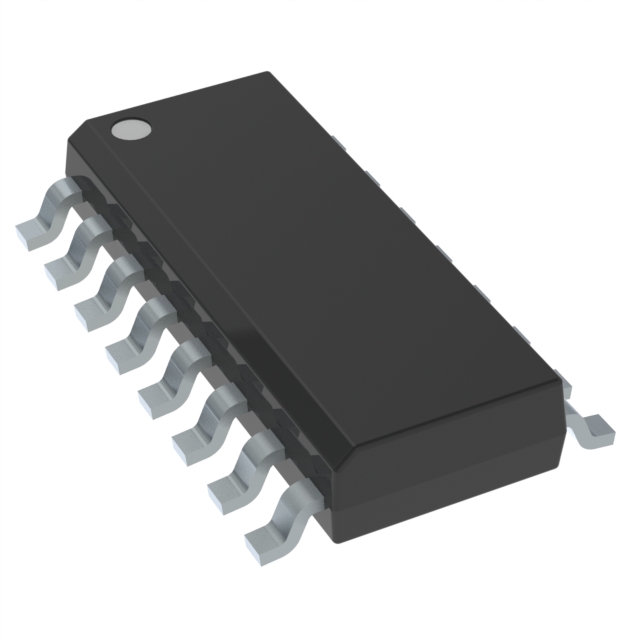

3-TO-8 LINE DECODER / DEMULTIPLEXER, 74HC, 8 OUTPUTS, 2 V TO 6 V, 16 PINS, SOIC
Deep-Dive with AI
Search across all available documentation for this part.
74HC138S16-13
ActiveDiodes Inc
3-TO-8 LINE DECODER / DEMULTIPLEXER, 74HC, 8 OUTPUTS, 2 V TO 6 V, 16 PINS, SOIC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 74HC138S16-13 |
|---|---|
| Circuit | 1 x 3:8 |
| Current - Output High, Low [custom] | 5.2 mA |
| Current - Output High, Low [custom] | 5.2 mA |
| Independent Circuits | 1 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Supplier Device Package | 16-SO |
| Type | Decoder/Demultiplexer |
| Voltage - Supply [Max] | 6 V |
| Voltage - Supply [Min] | 2 V |
| Voltage Supply Source | Single Supply |
