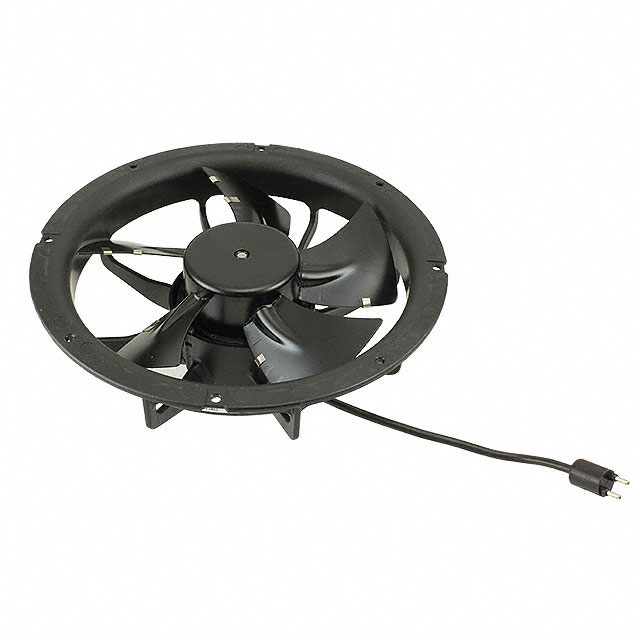

W1G200-EA95-68

Obsolete

ebm-papst Inc.

ESM (ENERGY SAVING MOTOR) FAN

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

ESM (ENERGY SAVING MOTOR) FAN

Technical Specifications

Parameters and characteristics for this part

Specification	W1G200-EA95-68

Approval Agency	CSA, UL
Bearing Type	Ball
Current Rating (Amps)	150 mA
Fan Type	Tubeaxial
Ingress Protection	IP54 - Dust Protected, Water Resistant
Material - Blade	Steel
Material - Frame	Polypropylene (PP)
Power (Watts)	10 W
RPM	1300 RPM
Size / Dimension	Round
Size / Dimension [diameter]	220 mm
Termination	2 Position Rectangular Connector
Voltage - Rated	115 VAC
Width [y]	76.4 mm

Part	Material - Blade	Power (Watts)	Material - Frame	Ingress Protection	Width [y]	Termination	Voltage - Rated	RPM	Bearing Type	Approval Agency	Current Rating (Amps)	Fan Type	Size / Dimension	Size / Dimension [diameter]	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Noise	Weight	Weight	Voltage - Rated [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Features
ebm-papst Inc. W1G200-EA95-68	Steel	10 W	Polypropylene (PP)	IP54 - Dust Protected Water Resistant	76.4 mm	2 Position Rectangular Connector	115 VAC	1300 RPM	Ball	CSA UL	150 mA	Tubeaxial	Round	220 mm
ebm-papst Inc. W1G200-CH01-52	Steel	55 W	Aluminum		80 mm	2 Wire Leads			Ball	CSA UL		Tubeaxial	Round	280 mm	16.46 m³/min	588 CFM	36 VDC	56 VDC	60 dB(A)	1.5 kg	3.3 lbs	48 VDC
ebm-papst Inc. W1G200-EC91-45	Nylon Polyamide (PA)	31 W	Polypropylene (PP)	IP55 - Dust Protected Water Resistant	78.5 mm	3 Wire Leads with Splice Terminals	230 VAC	1500 RPM	Ball	CCC CE CSA EAC UL VDE	0.24 A	Tubeaxial		250 mm									-30 ░C	50 °C	-30 °C	50 °C	0.22 in H2O	55 Pa	Thermal Overload Protector (TOP)
