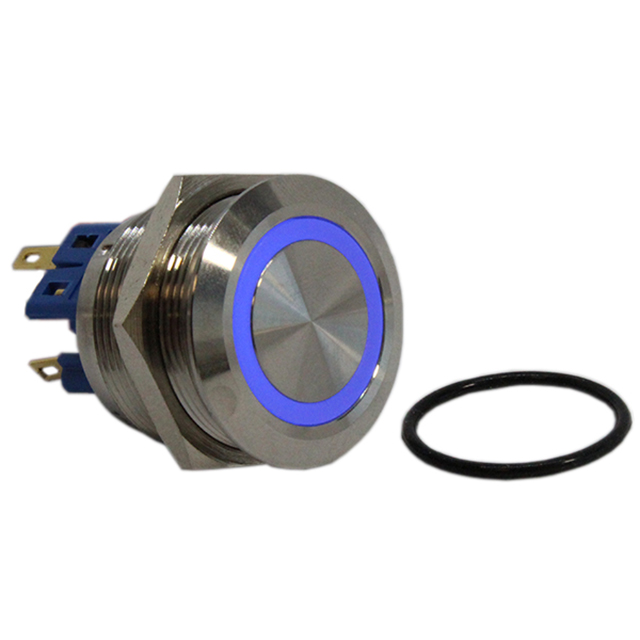

DH252LBSBN

Active

CIT Relay and Switch

SWITCH PB 4PST-2NO/2NC 2A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DH252LBSBN

Active

CIT Relay and Switch

SWITCH PB 4PST-2NO/2NC 2A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DH252LBSBN

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPST-NO/NC
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Features	Stainless Steel
Illumination Type, Color	LED, Blue
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	25 mm
Switch Function	On-Off, Off-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

DH252 Series

Part	Color - Actuator/Cap	Actuator Marking	Circuit	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Mounting Type	Termination Style	Termination Style	Termination Style	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Electrical Life	Type	Switch Function	Current Rating (Amps)	Voltage Rating - DC	Illumination Type, Color	Features	Illumination Voltage (Nominal)
CIT Relay and Switch DH252LASZZ	Silver	No Marking	4PST-2NO/2NC	Button Flush Round	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	25 mm	125 V	50000 Cycles	Anti-Vandal	Off-On On-Off	2 A	24 V
CIT Relay and Switch DH252LBSBN	Silver	No Marking	DPST-NO/NC	Button Flush Round	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	25 mm	125 V	50000 Cycles	Anti-Vandal Illuminated	Off-On On-Off	2 A	24 V	Blue LED	Stainless Steel
CIT Relay and Switch DH252NBSG24	Silver	No Marking	4PST-2NO/2NC	Button Flush Round	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	25 mm	125 V	50000 Cycles	Anti-Vandal Illuminated	Off-Mom On-Mom	2 A	24 V	Green LED		24 V
CIT Relay and Switch DH252LBBBN	Black	No Marking	DPST-NO/NC	Button Flush Round	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	25 mm	125 V	50000 Cycles	Anti-Vandal Illuminated	Off-On On-Off	2 A	24 V	Blue LED
CIT Relay and Switch DH252NBSGN	Silver	No Marking	4PST-2NO/2NC	Button Flush Round	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	25 mm	125 V	50000 Cycles	Anti-Vandal Illuminated	Off-Mom On-Mom	2 A	24 V	Green LED
CIT Relay and Switch DH252NABZZ	Black	No Marking	4PST-2NO/2NC	Button Flush Round	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	25 mm	125 V	50000 Cycles	Anti-Vandal	Off-Mom On-Mom	2 A	24 V
CIT Relay and Switch DH252LBBRN	Black	No Marking	DPST-NO/NC	Button Flush Round	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	25 mm	125 V	50000 Cycles	Anti-Vandal Illuminated	Off-On On-Off	2 A	24 V	LED Red
CIT Relay and Switch DH252NBSR12	Silver	No Marking	4PST-2NO/2NC	Button Flush Round	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	25 mm	125 V	50000 Cycles	Anti-Vandal Illuminated	Off-Mom On-Mom	2 A	24 V	LED Red		12 VDC
CIT Relay and Switch DH252LBSGN	Silver	No Marking	4PST-2NO/2NC	Button Flush Round	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	25 mm	125 V	50000 Cycles	Anti-Vandal Illuminated	Off-On On-Off	2 A	24 V	Green LED
CIT Relay and Switch DH252LBSRN	Silver	No Marking	4PST-2NO/2NC	Button Flush Round	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	25 mm	125 V	50000 Cycles	Anti-Vandal Illuminated	Off-On On-Off	2 A	24 V	LED Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	5	$ 25.90

Description

General part information

DH252 Series

Pushbutton Switch DPST-NO/NC Anti-Vandal, Illuminated Panel Mount, Front
