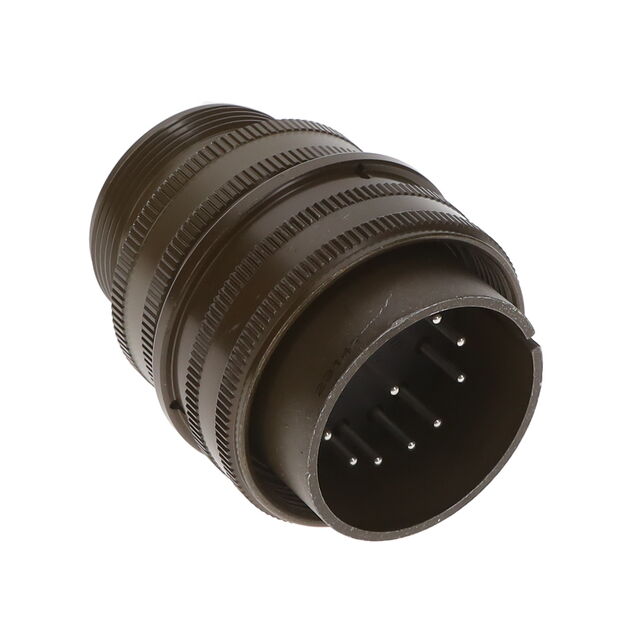

MS3106A28-18P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3106A28-18P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106A28-18P

Applications	Military, Marine
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Features	Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max] [diameter]	28
Shell Size - Insert [Min] [diameter]	18
Shielding	Unshielded

MS3106A28 Series

Part	Contact Material	Qualification	Voltage Rating	Contact Finish - Mating	Orientation	Ingress Protection	Insert Material	Shell Finish	Connector Type	Applications	Shell Material	Shielding	Grade	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions	Shell Size - Insert	Features	Mounting Type	Color	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Amphenol Industrial Operations MS3106A28-2S	Copper Alloy	MIL-DTL-5015	900 VAC 1250 VDC	Silver	N	Environment Resistant	Neoprene	Olive Drab Chromate over Cadmium	Female Sockets Plug	Marine Military	Aluminum Alloy	Unshielded	Military	Metal	-55 °C	125 °C	13 A 23 A	14	28-2	Backshell Coupling Nut	Free Hanging (In-Line)	Olive Drab
Amphenol Industrial Operations MS3106A28-7S
Amphenol Industrial Operations MS3106A28-11S-RES
Amphenol Industrial Operations MS3106A28-16SX
Amphenol Industrial Operations MS3106A28-18P	Copper Alloy	MIL-DTL-5015		Silver	N	Environment Resistant	Neoprene	Olive Drab Chromate over Cadmium	Male Pins Plug	Marine Military	Aluminum Alloy	Unshielded	Military	Metal	-55 °C	125 °C	13 A	12		Backshell Coupling Nut	Free Hanging (In-Line)	Olive Drab	28	18
Amphenol Industrial Operations MS3106A28-16P	Copper Alloy	MIL-DTL-5015		Silver	N		Neoprene	Olive Drab Chromate over Cadmium	Male Pins Plug	Marine Military	Aluminum Alloy	Unshielded		Metal	-55 °C	125 °C		20		Backshell Coupling Nut	Free Hanging (In-Line)	Olive Drab			28	16
Amphenol Industrial Operations MS3106A28-22P	Copper Alloy	MIL-DTL-5015	900 VAC 1250 VDC	Silver	N	Environment Resistant	Neoprene	Olive Drab Chromate over Cadmium	Male Pins Plug	Marine Military	Aluminum Alloy	Unshielded	Military	Metal	-55 °C	125 °C	13 A 80 A	6		Backshell Coupling Nut	Free Hanging (In-Line)	Olive Drab					28	22
Amphenol Industrial Operations MS3106A28-9S	Copper Alloy	MIL-DTL-5015	900 VAC 1250 VDC	Silver	N	Environment Resistant	Neoprene	Olive Drab Chromate over Cadmium	Female Sockets Plug	Marine Military	Aluminum Alloy	Unshielded	Military	Metal	-55 °C	125 °C	13 A 23 A	12	28-9	Backshell Coupling Nut	Free Hanging (In-Line)	Olive Drab
Amphenol Industrial Operations MS3106A28-10SW	Copper Alloy	MIL-DTL-5015		Silver	W		Neoprene	Olive Drab Chromate over Cadmium	Female Sockets Plug	Marine Military	Aluminum Alloy	Unshielded		Metal	-55 °C	125 °C		7	28-10	Backshell Coupling Nut	Free Hanging (In-Line)	Olive Drab
Amphenol Industrial Operations MS3106A28-5S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 49.86
		10	$ 45.76
		25	$ 44.00
		50	$ 42.53
		100	$ 40.18
		250	$ 39.01

Description

General part information

MS3106A28 Series

12 Position Circular Connector Plug, Male Pins Solder Cup
