NFM3DCC223R1H3L

Active

Murata Power Solutions Inc.

CAP FEEDTHRU 0.022UF 50V 1205

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

CAP FEEDTHRU 0.022UF 50V 1205

Technical Specifications

Parameters and characteristics for this part

Part	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance [Max]	Tolerance [Min]	Height (Max) [Max]	Height (Max) [Max]	Voltage - Rated	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case [custom]
Murata Power Solutions Inc. NFM3DCC471R1H3L	470 pF	-55 °C	125 °C	50 %	-20 %	0.035 in	0.9 mm	50 VDC	Surface Mount	0.049 in	3.2 mm	1.25 mm	0.126 in	1205 (3212 Metric)	3
Murata Power Solutions Inc. NFM3DCC223R1H3L	0.022 µF	-55 °C	125 °C	50 %	-20 %	0.035 in	0.9 mm	50 VDC	Surface Mount	0.049 in	3.2 mm	1.25 mm	0.126 in	1205 (3212 Metric)	3
Murata Power Solutions Inc. NFM3DCC221R1H3L	220 pF	-55 °C	125 °C	50 %	-20 %	0.035 in	0.9 mm	50 VDC	Surface Mount	0.049 in	3.2 mm	1.25 mm	0.126 in	1205 (3212 Metric)	3
Murata Power Solutions Inc. NFM3DCC102R1H3L	0.001 µF	-55 °C	125 °C	50 %	-20 %	0.035 in	0.9 mm	50 VDC	Surface Mount	0.049 in	3.2 mm	1.25 mm	0.126 in	1205 (3212 Metric)	3
Murata Power Solutions Inc. NFM3DCC470U1H3L	47 pF	-55 °C	125 °C	50 %	-20 %	0.035 in	0.9 mm	50 VDC	Surface Mount	0.049 in	3.2 mm	1.25 mm	0.126 in	1205 (3212 Metric)	3
Murata Power Solutions Inc. NFM3DCC220U1H3L	22 pF	-55 °C	125 °C	50 %	-20 %	0.035 in	0.9 mm	50 VDC	Surface Mount	0.049 in	3.2 mm	1.25 mm	0.126 in	1205 (3212 Metric)	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

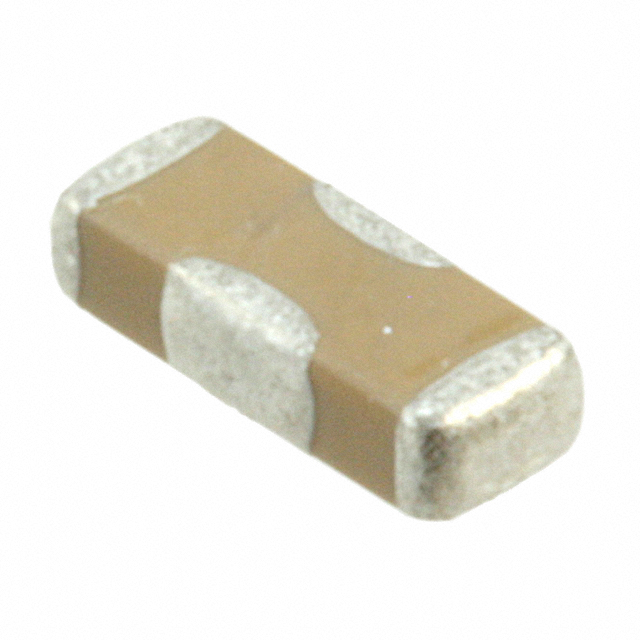

0.022 µF Feed Through Capacitor 50V 300 mA 1205 (3212 Metric), 3 PC Pad
