0386390067

Obsolete

Molex

SR BTS WW 81 3 ASY 6305-0310

Search across all available documentation for this part.

Obsolete

Molex

SR BTS WW 81 3 ASY 6305-0310

Technical Specifications

Parameters and characteristics for this part

Part	Material - Insulation	Number of Wire Entries	Color	Bottom Termination	Top Termination	Number of Rows	Terminal Block Type	Terminal Screw Material	Number of Circuits	Pitch [x]	Pitch [x]	Barrier Type	Mounting Type	Voltage Rating	Wire Gauge [Min]	Wire Gauge [Max]	Current Rating (Amps)	Features	Number of Circuits [custom]	Terminal Screw Finish	Material - Insulation
Molex 0386390111	Polybutylene Terephthalate (PBT) Polyester	4	Black	PC Pin	Screws	1	Barrier Block	Stainless Steel	4	11.12 mm	0.438 in	2 Wall (Dual)	Through Hole
Molex 0386390131
Molex 0386390120	Polybutylene Terephthalate (PBT) Polyester	13	Black	PC Pin	Screws	1	Barrier Block	Stainless Steel	13	11.12 mm	0.438 in	2 Wall (Dual)	Through Hole
Molex 0386390102	Polybutylene Terephthalate (PBT) Polyester	11	Black	PC Pin	Screws	1	Barrier Block	Stainless Steel	11	11.12 mm	0.438 in	2 Wall (Dual)	Chassis Panel Through Hole	600 V	12 AWG	24 AWG	25 A	Flange
Molex 0386390026
Molex 0386390007
Molex 0386390011	Polybutylene Terephthalate (PBT) Polyester	8	Black	Wire Wrap	Screws	1	Barrier Block	Steel		11.12 mm	0.438 in	2 Wall (Dual)	Chassis Panel					Flange	8	Clear Chromate Zinc
Molex 0386390067	Polycarbonate	3	Black	Wire Wrap	Screws	1	Barrier Block	Steel	3	11.12 mm	0.438 in	2 Wall (Dual)	Through Hole	600 V	12 AWG	22 AWG	25 A	Flange		Clear Chromate Zinc	PC
Molex 0386390032		4		Wire Wrap	Screws	1	Barrier Block		4	11.12 mm	0.438 in	2 Wall (Dual)	Chassis Panel	600 V	12 AWG	24 AWG	20 A
Molex 0386390010	Polybutylene Terephthalate (PBT) Polyester	7	Black	Wire Wrap	Screws	1	Barrier Block	Steel	7	11.12 mm	0.438 in	2 Wall (Dual)	Chassis Panel					Flange		Clear Chromate Zinc

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

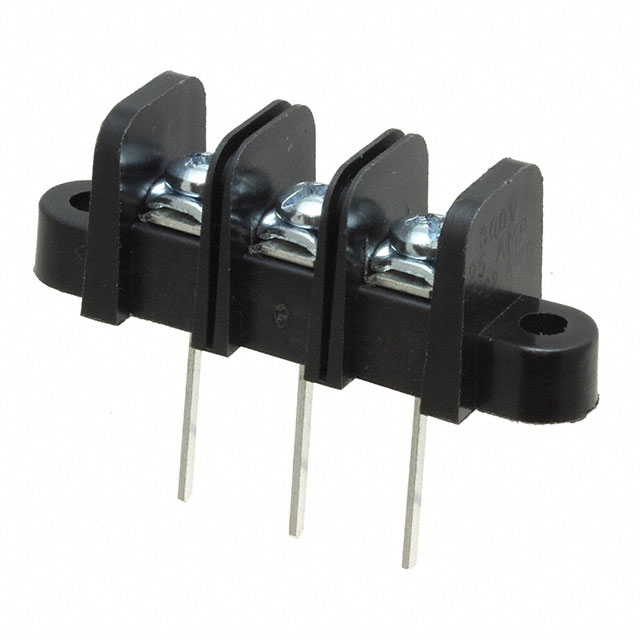

3 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
