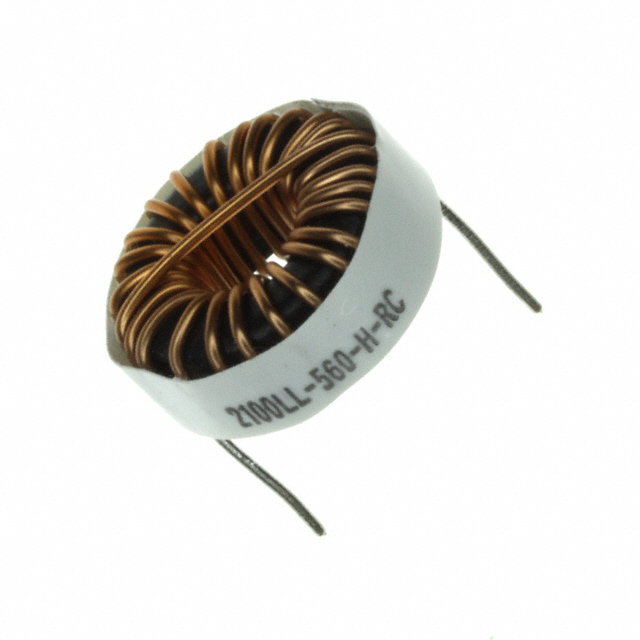

2100LL-560-H-RC

Active

Bourns Inc.

FIXED IND 56UH 5A 26 MOHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2100LL-560-H-RC

Active

Bourns Inc.

FIXED IND 56UH 5A 26 MOHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2100LL-560-H-RC

Current Rating (Amps)	5 A
DC Resistance (DCR) [Max]	26 mOhm
Height - Seated (Max) [Max] [z]	11.43 mm
Height - Seated (Max) [Max] [z]	0.45 in
Inductance	56 µH
Material - Core	Sendust
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Horizontal (Open)
Shielding	Shielded
Size / Dimension [diameter]	21.84 mm
Size / Dimension [diameter]	0.86 "
Tolerance	15 %
Type	Toroidal

2100LL Series

Part	Material - Core	Size / Dimension [y]	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [diameter]	Mounting Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Shielding	Current Rating (Amps)	Package / Case	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Bourns Inc. 2100LL-180-V-RC	Sendust	0.45 in	21.84 mm	11.43 mm	0.86 "	Through Hole	Toroidal	-55 °C	125 °C	18 µH	Shielded	10.1 A	Radial Vertical (Open)	15 %
Bourns Inc. 2100LL-470-H-RC	Sendust		21.84 mm		0.86 "	Through Hole	Toroidal	-55 °C	125 °C	47 µH	Shielded	5.2 A	Radial Horizontal (Open)	15 %	11.43 mm	0.45 in	24 mOhm
Bourns Inc. 2100LL-181-H-RC	Sendust		21.84 mm		0.86 "	Through Hole	Toroidal	-55 °C	125 °C	180 µH	Shielded	3.7 A	Radial Horizontal (Open)	15 %	11.43 mm	0.45 in
Bourns Inc. 2100LL-100-H-RC	Sendust		21.84 mm		0.86 "	Through Hole	Toroidal	-55 °C	125 °C	10 µH	Shielded	11.4 A	Radial Horizontal (Open)	15 %	11.43 mm	0.45 in	5 mOhm
Bourns Inc. 2100LL-470-V-RC	Sendust	0.45 in	21.84 mm	11.43 mm	0.86 "	Through Hole	Toroidal	-55 °C	125 °C	47 µH	Shielded	5.2 A	Radial Vertical (Open)	15 %			24 mOhm
Bourns Inc. 2100LL-391-V-RC	Sendust	0.45 in	21.84 mm	11.43 mm	0.86 "	Through Hole	Toroidal	-55 °C	125 °C	390 µH	Shielded	2.4 A	Radial Vertical (Open)	15 %			112 mOhm
Bourns Inc. 2100LL-560-H-RC	Sendust		21.84 mm		0.86 "	Through Hole	Toroidal	-55 °C	125 °C	56 µH	Shielded	5 A	Radial Horizontal (Open)	15 %	11.43 mm	0.45 in	26 mOhm
Bourns Inc. 2100LL-270-V-RC	Sendust	0.45 in	21.84 mm	11.43 mm	0.86 "	Through Hole	Toroidal	-55 °C	125 °C	27 µH	Shielded	7.3 A	Radial Vertical (Open)	15 %				12 mOhm
Bourns Inc. 2100LL-121-V-RC	Sendust	0.45 in	21.84 mm	11.43 mm	0.86 "	Through Hole	Toroidal	-55 °C	125 °C		Shielded	4.1 A	Radial Vertical (Open)	15 %				39 mOhm
Bourns Inc. 2100LL-150-H-RC	Sendust		21.84 mm		0.86 "	Through Hole	Toroidal	-55 °C	125 °C	15 µH	Shielded	10.5 A	Radial Horizontal (Open)	15 %	11.43 mm	0.45 in	6 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.60
		10	$ 2.17
		25	$ 1.99
		50	$ 1.70
		144	$ 1.66

Description

General part information

2100LL Series

56 µH Shielded Toroidal Inductor 5 A 26mOhm Max Radial, Horizontal (Open)
