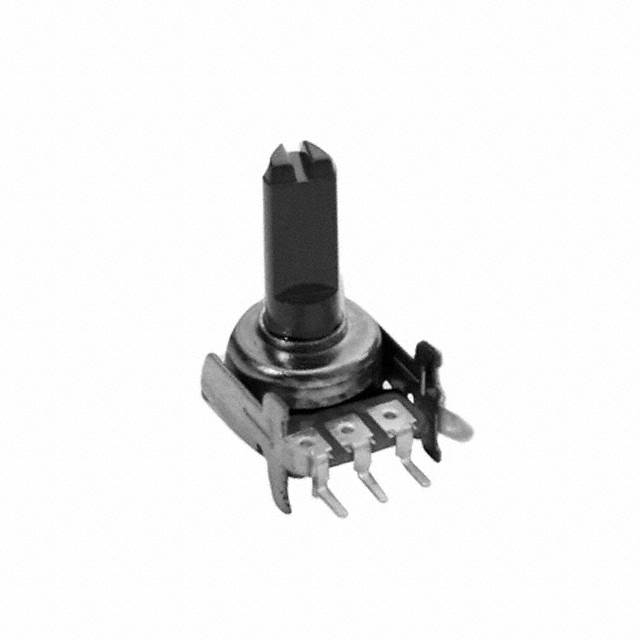

P120K-F20BR5K

Active

TT Electronics/BI

POT 5K OHM 1/20W PLASTIC LINEAR

Search across all available documentation for this part.

Active

TT Electronics/BI

POT 5K OHM 1/20W PLASTIC LINEAR

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Adjustment Type	Mounting Type	Number of Gangs	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Rotation	Actuator Length [z]	Actuator Length [z]	Number of Turns	Taper	Termination Style	Size - Body [diameter]	Size - Body [diameter]	Power (Watts)	Power (Watts)	Resistance (Ohms)	Tolerance	Resistive Material	Actuator Length	Resistance (Ohms)
TT Electronics/BI P120K-F20BR5K	Flatted	Side Adjustment	Snap In Through Hole	1	0.236 in	6 mm	300 ░	20 mm	0.787 in	1	Linear	Board Locks PC Pins	12.4 mm	0.488 in	0.05 W	50 mW	5 kOhms	20 %	Conductive Plastic
TT Electronics/BI P120KGP-F15B10K	Flatted	Top Adjustment	Snap In Through Hole	2	0.236 in	6 mm	300 ░		0.591 in	1	Linear	Board Locks PC Pins			0.05 W	50 mW		20 %	Conductive Plastic	15 mm	10k
TT Electronics/BI P120KGE-Y30BR50K	Knurled	Side Adjustment	Snap In Through Hole	2	0.236 in	6 mm	300 ░	30 mm	1.181 in	1	Linear	Board Locks PC Pins	12.4 mm	0.488 in	0.05 W	50 mW	50 kOhms	20 %	Conductive Plastic
TT Electronics/BI P120KGP-F15BR10K	Flatted	Top Adjustment	Snap In Through Hole	2	0.236 in	6 mm	300 ░		0.591 in	1	Linear	Board Locks PC Pins	12.4 mm	0.488 in	0.05 W	50 mW		20 %	Conductive Plastic	15 mm	10k
TT Electronics/BI P120KGP-Y15AR100K	Knurled	Top Adjustment	Snap In Through Hole	2	0.236 in	6 mm	300 ░		0.591 in	1	Logarithmic	Board Locks PC Pins	12.4 mm	0.488 in	0.05 W	50 mW	100 kOhms	20 %	Conductive Plastic	15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5k Ohm 1 Gang Linear Through Hole, Snap In Potentiometer None 1.0 Kierros Conductive Plastic 0.05W, 1/20W PC Pins, Board Locks
