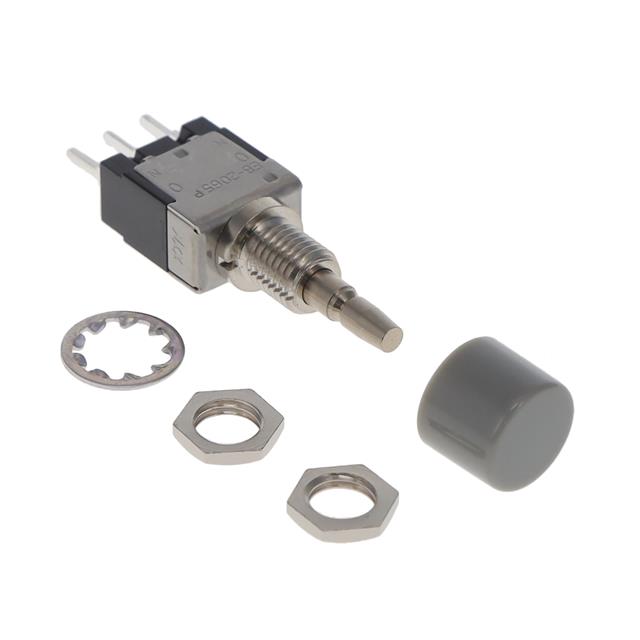

EB2065P-CH
ActiveNKK Switches
LIGHT TOUCH MINIATURE PUSHBUTTON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EB2065P-CH
ActiveNKK Switches
LIGHT TOUCH MINIATURE PUSHBUTTON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EB2065P-CH |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPDT |
| Current Rating (Amps) | 3 A |
| Electrical Life | 25000 Steps |
| Features | Epoxy Sealed Terminals |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C |
| Panel Cutout Dimensions [diameter] | 0.25 in |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 125 V |
EB2065 Series
| Part | Color - Actuator/Cap | Features | Current Rating (Amps) | Mounting Type | Type | Switch Function | Actuator Marking | Electrical Life | Actuator Type | Circuit | Termination Style | Mechanical Life | Illumination Type, Color | Voltage Rating - AC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Illumination Voltage (Nominal) | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Black | Epoxy Sealed Terminals | 3 A | Panel Mount Snap-In | Illuminated Standard | On-On | No Marking | 25000 Steps | Button Square | SPDT | Solder Lug | 100000 Cycles | Green/Red LED | 125 V | 15 mm | 18.4 mm | -10 °C | 158 °F | 2 VDC 2.1 VDC | |
NKK Switches | Blue | Epoxy Sealed Terminals | 3 A | Panel Mount Rear | Standard | On-On | No Marking | 25000 Steps | Button Round | SPDT | Solder Lug | 100000 Cycles | 125 V | -10 °C | 158 °F | 0.25 in | ||||
NKK Switches | Epoxy Sealed Terminals | 3 A | Panel Mount Rear | Standard | On-On | No Marking | 25000 Steps | Button Round | SPDT | PC Pin | 100000 Cycles | 125 V | -10 °C | 158 °F | 0.25 in | |||||
NKK Switches | White | Epoxy Sealed Terminals | 3 A | Panel Mount Snap-In | Standard | On-On | No Marking | 25000 Steps | Button Square | SPDT | Solder Lug | 100000 Cycles | 125 V | 12.5 mm | 15 mm | -10 °C | 158 °F | |||
NKK Switches | Epoxy Sealed Terminals | 3 A | Panel Mount Snap-In | Standard | On-On | No Marking | 25000 Steps | Button Square | SPDT | Solder Lug | 100000 Cycles | 125 V | 12.5 mm | 15 mm | -10 °C | 158 °F | ||||
NKK Switches | Epoxy Sealed Terminals | 3 A | Panel Mount Rear | Standard | On-On | No Marking | 25000 Steps | Plunger for Cap | SPDT | PC Pin | 100000 Cycles | 125 V | -10 °C | 158 °F | 0.25 in | |||||
NKK Switches | Red | Epoxy Sealed Terminals | 3 A | Panel Mount Rear | Standard | On-On | No Marking | 25000 Steps | Button Round | SPDT | PC Pin | 100000 Cycles | 125 V | -10 °C | 158 °F | 0.25 in | ||||
NKK Switches | Green | Epoxy Sealed Terminals | 3 A | Panel Mount Rear | Standard | On-On | No Marking | 25000 Steps | Button Round | SPDT | Solder Lug | 100000 Cycles | 125 V | -10 °C | 158 °F | 0.25 in | ||||
NKK Switches | White | Epoxy Sealed Terminals | 3 A | Panel Mount Rear | Standard | On-On | No Marking | 25000 Steps | Button Round | SPDT | Solder Lug | 100000 Cycles | 125 V | -10 °C | 158 °F | 0.25 in | ||||
NKK Switches | Red | Epoxy Sealed Terminals | 3 A | Panel Mount Snap-In | Standard | On-On | No Marking | 25000 Steps | Button Square | SPDT | Solder Lug | 100000 Cycles | 125 V | 12.5 mm | 15 mm | -10 °C | 158 °F |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EB2065 Series
Pushbutton Switch SPDT Standard Panel Mount, Rear
