P05N-060ST-A-G

Active

3M (TC)

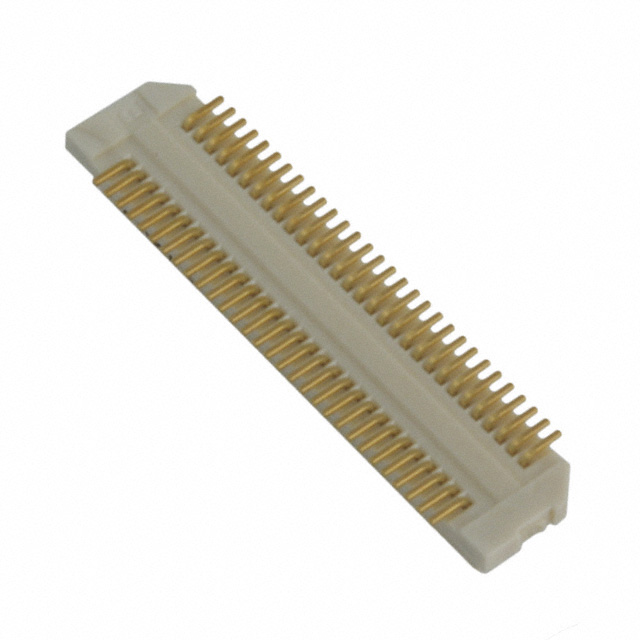

CONN SOCKET 60POS SMD GOLD

Search across all available documentation for this part.

Active

3M (TC)

CONN SOCKET 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	P05N-060ST-A-G

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Features	Solder Retention
Height Above Board [z]	0.093 in
Height Above Board [z]	2.35 mm
Mated Stacking Heights	3 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Pitch [x]	Pitch [x]	Mounting Type	Mated Stacking Heights	Features	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Number of Positions	Contact Finish	Height Above Board	Height Above Board
3M (TC) P05N-030ST-A-G	0.5 mm	0.02 in	Surface Mount	3 mm	Solder Retention	0.093 in	2.35 mm	8 çin	0.203 çm	2	Outer Shroud Contacts Socket	30	Gold
3M (TC) P05N-060ST-A-G	0.5 mm	0.02 in	Surface Mount	3 mm	Solder Retention	0.093 in	2.35 mm	8 çin	0.203 çm	2	Outer Shroud Contacts Socket	60	Gold
3M (TC) P05N-020PT-A-G	0.5 mm	0.02 in	Surface Mount	3 mm	Solder Retention			8 çin	0.203 çm	2		20	Gold	0.094 "	2.4 mm
3M (TC) P05N-020ST-B-G	0.5 mm	0.02 in	Surface Mount	4 mm 5 mm 6 mm	Solder Retention			8 çin	0.203 çm	2	Outer Shroud Contacts Socket	20	Gold	0.12 in	3.05 mm
3M (TC) P05N-020ST-A-G	0.5 mm	0.02 in	Surface Mount	3 mm	Solder Retention	0.093 in	2.35 mm	8 çin	0.203 çm	2	Outer Shroud Contacts Socket	20	Gold
3M (TC) P05N-080ST-A-G	0.5 mm	0.02 in	Surface Mount	3 mm	Solder Retention	0.093 in	2.35 mm	8 çin	0.203 çm	2	Outer Shroud Contacts Socket	80	Gold
3M (TC) P05N-100PT-B-G	0.5 mm	0.02 in	Surface Mount	4 mm	Solder Retention			8 çin	0.203 çm	2		100	Gold	0.13 in	3.3 mm
3M (TC) P05N-040ST-A-G	0.5 mm	0.02 in	Surface Mount	3 mm	Solder Retention	0.093 in	2.35 mm	8 çin	0.203 çm	2	Outer Shroud Contacts Socket	40	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

60 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
