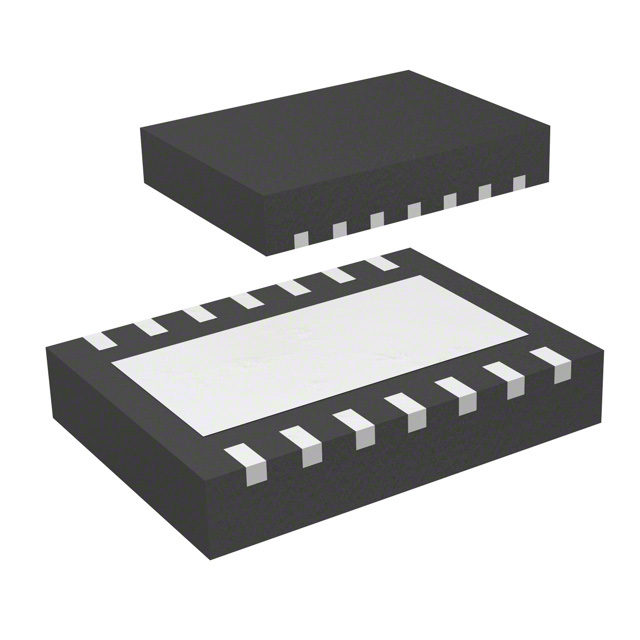

RT8287ZQW
ActiveRichtek USA Inc.
IC REG BUCK ADJ 3A 14WDFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT8287ZQW
ActiveRichtek USA Inc.
IC REG BUCK ADJ 3A 14WDFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT8287ZQW |
|---|---|
| Current - Output | 3 A |
| Frequency - Switching | 500 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-WDFN (4x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 21 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Min/Fixed) | 0.808 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.94 | |
| 10 | $ 1.24 | |||
| 25 | $ 1.05 | |||
| 100 | $ 0.84 | |||
| 250 | $ 0.74 | |||
| 500 | $ 0.68 | |||
| Digi-Reel® | 1 | $ 1.94 | ||
| 10 | $ 1.24 | |||
| 25 | $ 1.05 | |||
| 100 | $ 0.84 | |||
| 250 | $ 0.74 | |||
| 500 | $ 0.68 | |||
| Tape & Reel (TR) | 1500 | $ 0.60 | ||
| 3000 | $ 0.56 | |||
| 4500 | $ 0.54 | |||
| 7500 | $ 0.52 | |||
| 10500 | $ 0.51 | |||
| 15000 | $ 0.49 | |||
Description
General part information
RT8287 Series
Buck Switching Regulator IC Positive Adjustable 0.808V 1 Output 3A 14-WFDFN Exposed Pad
