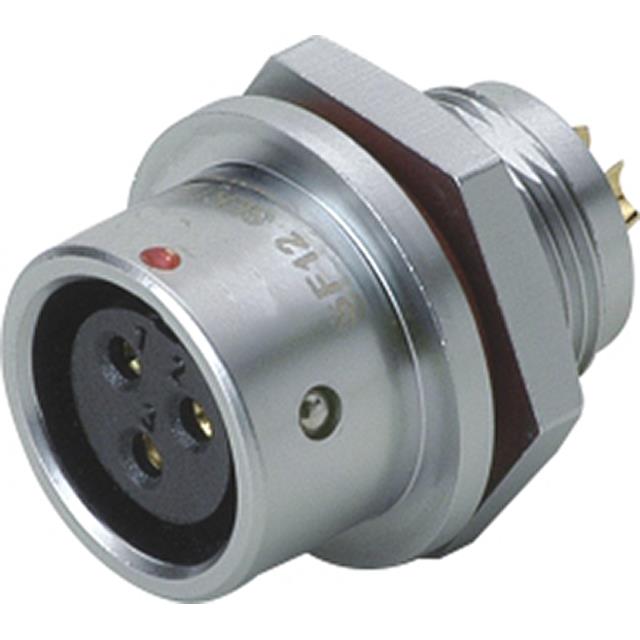

PD-SF1212-S9

Active

Power Dynamics, Inc.

CONN PLUG FMALE 9POS SLDR CUP

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

CONN PLUG FMALE 9POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	PD-SF1212-S9

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	9
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shielding	Unshielded
Voltage Rating	125 VAC

Part	Ingress Protection	Voltage Rating	Color	Current Rating (Amps)	Shielding	Contact Finish - Mating	Contact Material	Mounting Feature	Orientation	Fastening Type	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Material Flammability Rating	Insert Material	Connector Type	Shell Material	Number of Positions
Power Dynamics, Inc. PD-SF1212-S9	IP67 - Dust Tight Waterproof	125 VAC	Silver	3 A	Unshielded	Gold	Brass	Bulkhead - Rear Side Nut	Keyed	Push-Pull	Chrome	85 °C	-40 °C	Metal	UL94 V-0	Polyphenylene Sulfide (PPS)	Female Sockets Plug	Brass	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Plug, Female Sockets Solder Cup
