Q-0405C0003003i

Active

Amphenol Custom Cable

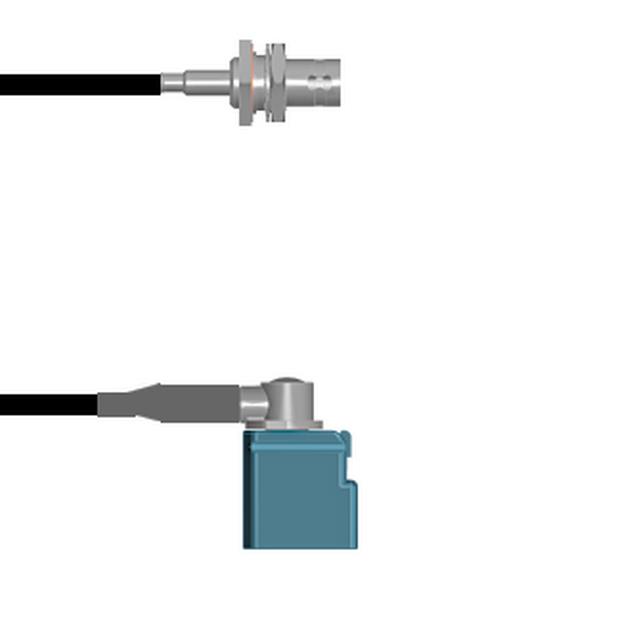

CBL ASSY BNC-FAKRA JACK-JACK 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0405C0003003i

Active

Amphenol Custom Cable

CBL ASSY BNC-FAKRA JACK-JACK 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0405C0003003i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	Fakra Jack, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	BNC to Fakra

Q-0405C0 Series

Part	2nd Connector Mounting Type	Cable Type	Features	Style	2nd Contact Gender	Frequency - Max [Max]	Length	Length	Length	Color	1st Contact Gender	1st Connector Mounting Feature	1st Connector	2nd Connector	1st Connector Mounting Type	Overall Impedance
Amphenol Custom Cable Q-0405C0005002M	Free Hanging (In-Line)	RG-316	Shielded	BNC to Fakra	Female	3 GHz	6.6 ft	78.7 in	2 m	Copper	Female	Bulkhead - Front Side Nut	BNC Jack	Fakra Jack Right Angle	Panel Mount	50 Ohms
Amphenol Custom Cable Q-0405C0005036i	Free Hanging (In-Line)	RG-316	Shielded	BNC to Fakra	Female	3 GHz		36 in	91.44 cm	Copper	Female	Bulkhead - Front Side Nut	BNC Jack	Fakra Jack Right Angle	Panel Mount	50 Ohms
Amphenol Custom Cable Q-0405C0003006i	Free Hanging (In-Line)	RG-174	Shielded	BNC to Fakra	Female	3 GHz		6 in	152.4 mm	Black	Female	Bulkhead - Front Side Nut	BNC Jack	Fakra Jack Right Angle	Panel Mount	50 Ohms
Amphenol Custom Cable Q-0405C00030.5M	Free Hanging (In-Line)	RG-174	Shielded	BNC to Fakra	Female	3 GHz		19.69 "	50 cm	Black	Female	Bulkhead - Front Side Nut	BNC Jack	Fakra Jack Right Angle	Panel Mount	50 Ohms
Amphenol Custom Cable Q-0405C00032.5M	Free Hanging (In-Line)	RG-174	Shielded	BNC to Fakra	Female	3 GHz	8.2 '	98.4 in	2.5 m	Black	Female	Bulkhead - Front Side Nut	BNC Jack	Fakra Jack Right Angle	Panel Mount	50 Ohms
Amphenol Custom Cable Q-0405C0003084i	Free Hanging (In-Line)	RG-174	Shielded	BNC to Fakra	Female	3 GHz	7 ft	84 in	2.1 m	Black	Female	Bulkhead - Front Side Nut	BNC Jack	Fakra Jack Right Angle	Panel Mount	50 Ohms
Amphenol Custom Cable Q-0405C0005108i	Free Hanging (In-Line)	RG-316	Shielded	BNC to Fakra	Female	3 GHz	9 ft	108 in	2.7 m	Copper	Female	Bulkhead - Front Side Nut	BNC Jack	Fakra Jack Right Angle	Panel Mount	50 Ohms
Amphenol Custom Cable Q-0405C0003003i	Free Hanging (In-Line)	RG-174	Shielded	BNC to Fakra	Female	3 GHz		3 in	76.2 mm	Black	Female	Bulkhead - Front Side Nut	BNC Jack	Fakra Jack Right Angle	Panel Mount	50 Ohms
Amphenol Custom Cable Q-0405C0005084i	Free Hanging (In-Line)	RG-316	Shielded	BNC to Fakra	Female	3 GHz	7 ft	84 in	2.1 m	Copper	Female	Bulkhead - Front Side Nut	BNC Jack	Fakra Jack Right Angle	Panel Mount	50 Ohms
Amphenol Custom Cable Q-0405C00031.5M	Free Hanging (In-Line)	RG-174	Shielded	BNC to Fakra	Female	3 GHz	4.9 ft	59.1 in	1.5 m	Black	Female	Bulkhead - Front Side Nut	BNC Jack	Fakra Jack Right Angle	Panel Mount	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 59.73
		25	$ 58.56
		50	$ 57.39
		100	$ 56.22
		250	$ 55.05

Description

General part information

Q-0405C0 Series

Cable Assembly Coaxial BNC to Fakra RG-174 3.000" (76.20mm)

Documents

Technical documentation and resources

No documents available
