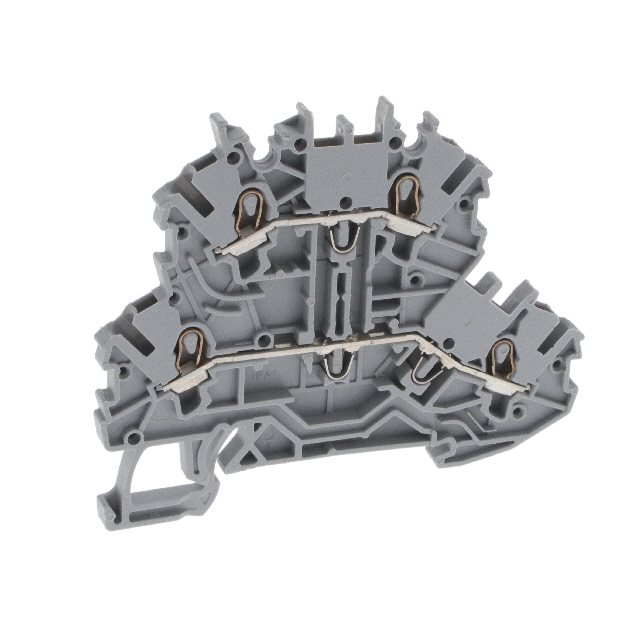

2000-2201
ActiveWAGO Corporation
DOUBLE-DECK TERMINAL BLOCK; THRO
Deep-Dive with AI
Search across all available documentation for this part.
2000-2201
ActiveWAGO Corporation
DOUBLE-DECK TERMINAL BLOCK; THRO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2000-2201 |
|---|---|
| Color | Gray |
| Current - IEC | 16 A |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Stripping Length [Max] | 11 mm |
| Stripping Length [Min] | 9 mm |
| Terminal - Width [y] | 3.5 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Voltage - IEC | 500 V |
| Voltage - UL [custom] | 300 V |
| Wire Gauge or Range - AWG [Max] | 20 AWG |
| Wire Gauge or Range - AWG [Min] | 16 AWG |
| Wire Gauge or Range - mm² [Max] | 1.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.5 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.73 | |
| 10 | $ 4.11 | |||
| 25 | $ 3.79 | |||
| 50 | $ 3.61 | |||
| 100 | $ 3.48 | |||
| 250 | $ 3.36 | |||
| 500 | $ 3.29 | |||
| 1000 | $ 3.24 | |||
Description
General part information
2000-220 Series
Terminal Block Connector 4 Position Feed Through Gray 16-20 AWG
