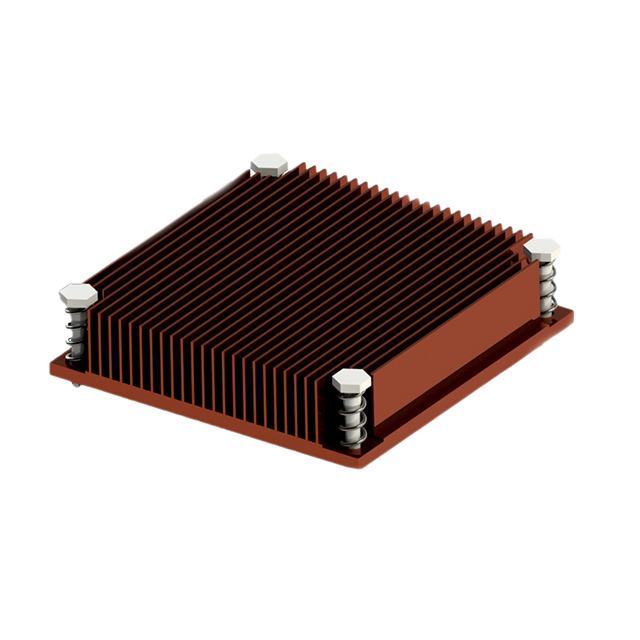

SKV707014-CU
ActiveWakefield-Vette
COPPER HEATSINK 70X70X14MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKV707014-CU
ActiveWakefield-Vette
COPPER HEATSINK 70X70X14MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKV707014-CU |
|---|---|
| Attachment Method | Push Pin |
| Fin Height [z] | 14 mm |
| Fin Height [z] | 0.551 in |
| Length | 70 mm |
| Length | 2.756 " |
| Material | Copper |
| Shape | Square, Fins |
| Thermal Resistance @ Forced Air Flow | 1.4 °C/W |
| Thermal Resistance @ Natural | 5.6 °C/W |
| Type | Top Mount, Skived |
| Width [y] | 2.756 in |
| Width [y] | 70 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.76 | |
| 10 | $ 24.24 | |||
| 25 | $ 22.72 | |||
| 50 | $ 21.21 | |||
| 100 | $ 20.45 | |||
| 250 | $ 19.32 | |||
| 500 | $ 18.94 | |||
Description
General part information
SKV707014 Series
Heat Sink Copper Top Mount, Skived
