WB3F200VD1

Obsolete

JAE Electronics

CONN RCPT 200POS SMD GOLD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 200POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WB3F200VD1

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Solder Retention, Board Guide
Height Above Board	0.098 in
Height Above Board	2.5 mm
Mated Stacking Heights	4 mm, 5 mm
Mounting Type	Surface Mount
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Features	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Mounting Type	Mated Stacking Heights	Contact Finish	Height Above Board [z]	Height Above Board [z]
JAE Electronics WB3F200VD1	Board Guide Solder Retention	0.098 in	2.5 mm	0.5 mm	0.02 in	0.76 Ám	30 Áin	2	Center Strip Contacts Receptacle	Surface Mount	4 mm 5 mm	Gold
JAE Electronics WB3F200VD1T	Board Guide Solder Retention			0.5 mm	0.02 in	0.76 Ám	30 Áin	2	Center Strip Contacts Receptacle	Surface Mount	4 mm 5 mm	Gold	3.2 mm	0.126 in
JAE Electronics WB3F200VD1TR1000	Board Guide Solder Retention			0.5 mm	0.02 in	0.76 Ám	30 Áin	2	Center Strip Contacts Receptacle	Surface Mount	4 mm 5 mm	Gold	3.2 mm	0.126 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

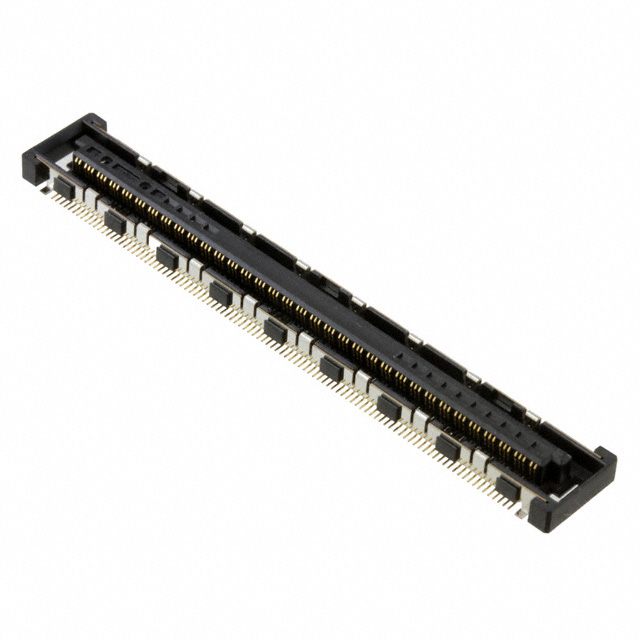

200 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
