082-4426-11RFX

Active

Amphenol RF

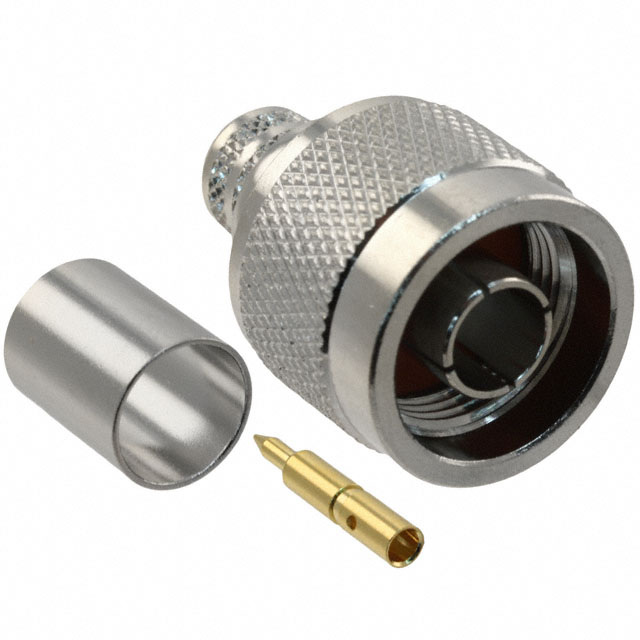

CONN N PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN N PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	082-4426-11RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1500 V

Part	Housing Color	Center Contact Plating	Center Contact Material	Impedance	Body Finish	Cable Group	Shield Termination	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Mounting Type	Mating Cycles	Body Material	Frequency - Max [Max]	Voltage Rating	Contact Termination	Number of Ports	Dielectric Material	Connector Style	Connector Type	Ingress Protection	Cable Group
Amphenol RF 082-4426-11RFX	Silver	Gold	Brass	50 Ohms	Nickel	213 214 225 302 393 87 8A 9 9A 9B RG-8	Crimp	0.15 dB	-65 ░C	165 °C	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line)	500	Brass	11 GHz	1500 V	Crimp	1	Polytetrafluoroethylene (PTFE)	N Type	Male Pin Plug
Amphenol RF 082-4429-RFX	Silver	Gold	Phosphor Bronze	50 Ohms	Nickel	213 214 225 302 393 87 8A 9 9A 9B RG-8	Crimp		-65 ░C	165 °C	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line)	500	Brass	11 GHz		Crimp	1	Polytetrafluoroethylene (PTFE)	N Type	Female Socket Jack
Amphenol RF 082-4426	Silver	Gold	Brass	50 Ohms	Silver	213 214 225 302 393 87 8A 9 9A 9B RG-8	Crimp	0.15 dB	-65 ░C	165 °C	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line)	500	Brass	11 GHz	1500 V	Crimp Solder	1	Polytetrafluoroethylene (PTFE)	N Type	Male Pin Plug
Amphenol RF 082-4427	Silver	Gold	Brass	50 Ohms	Silver	RG-55	Crimp	0.15 dB	-65 ░C	165 °C	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line)	500	Brass	11 GHz	1500 V	Crimp Solder	1	Polytetrafluoroethylene (PTFE)	N Type	Male Pin Plug	Weatherproof	142 223 400

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
