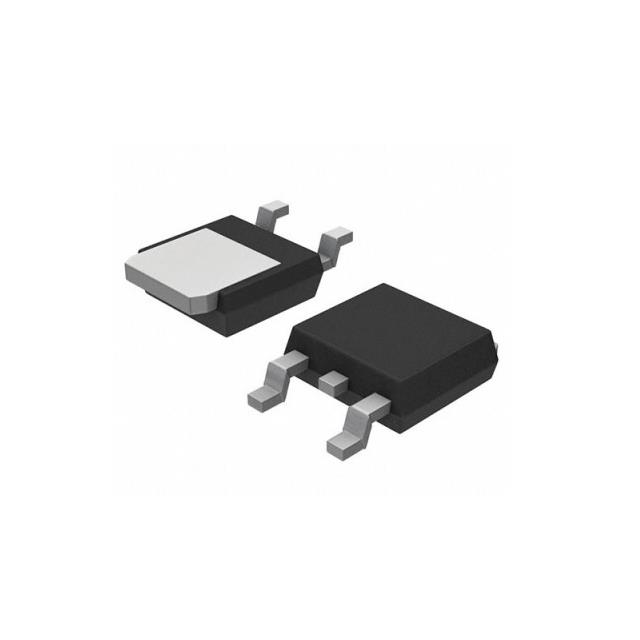

AMD560C-CT
ActiveAnalog Power Inc.
MOSFET N/P-CH 60V 35A TO252
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMD560C-CT
ActiveAnalog Power Inc.
MOSFET N/P-CH 60V 35A TO252
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMD560C-CT |
|---|---|
| Configuration | N and P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 20 A, 35 A |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 1143 pF, 1422 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | DPAK (4 Leads + Tab), TO-252-5, TO-252AD |
| Power - Max [Max] | 50 W |
| Rds On (Max) @ Id, Vgs | 24 mOhm, 85 mOhm |
| Supplier Device Package | TO-252-4 |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 0.72 | |
| 10 | $ 0.48 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.28 | |||
Description
General part information
AMD560C-CT
Mosfet Array 60V 35A (Tc), 20A (Tc) 50W (Tc) Surface Mount TO-252-4
