BC-CTP-203015

Active

Boxco

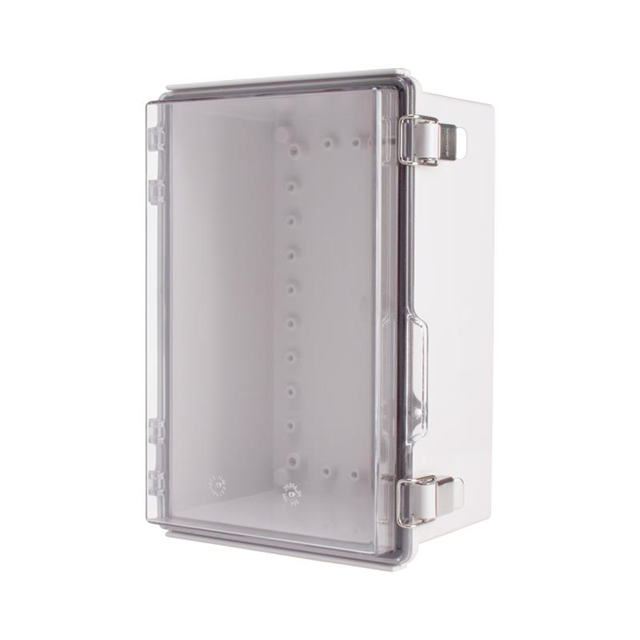

BOX PLAS CLEAR 11.81"L X 7.87"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BC-CTP-203015

Active

Boxco

BOX PLAS CLEAR 11.81"L X 7.87"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BC-CTP-203015

Area (L x W)	600 cm²
Area (L x W)	93 in˛
Color	Light Gray, Clear Cover
Container Type	Box
Design	Stainless Steel Latch, Hinged Door
Features	Flame Retardant, Hinged, Lockable, Sealing Gasket, Latches
Height [z]	5.906 in
Height [z]	150 mm
Material	Plastic, Polycarbonate/Fiberglass
Material Flammability Rating	UL94 V-0, UL94 5VA, UL94 HB
Ratings	NEMA 6, IP66, UL 508A, NEMA 4X, IP67
Size / Dimension [x]	300 mm
Size / Dimension [x]	11.811 in
Size / Dimension [y]	200 mm
Size / Dimension [y]	7.874 "

BC-CTP Series

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Container Type	Features	Height [z]	Height [z]	Material Flammability Rating	Design	Area (L x W)	Area (L x W)	Material	Ratings	Color	Height [z]
Boxco BC-CTP-203018	200 mm	7.874 "	300 mm	11.811 in	Box	Flame Retardant Hinged Latches Lockable Sealing Gasket	180 mm	7.087 in	UL94 5VA UL94 HB UL94 V-0	Hinged Door Stainless Steel Latch	600 cm²	93 in˛	Plastic Polycarbonate/Fiberglass	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Clear Cover Light Gray
Boxco BC-CTP-212110	210 mm	8.268 in	210 mm	8.268 in	Box	Flame Retardant Hinged Latches Lockable Sealing Gasket	100 mm	3.937 in	UL94 5VA UL94 HB UL94 V-0	Hinged Door Stainless Steel Latch	441 cm˛	68.4 in²	Plastic Polycarbonate/Fiberglass	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Clear Cover Light Gray
Boxco BC-CTP-203015	200 mm	7.874 "	300 mm	11.811 in	Box	Flame Retardant Hinged Latches Lockable Sealing Gasket	5.906 in		UL94 5VA UL94 HB UL94 V-0	Hinged Door Stainless Steel Latch	600 cm²	93 in˛	Plastic Polycarbonate/Fiberglass	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Clear Cover Light Gray	150 mm
Boxco BC-CTP-283813	280 mm	11.024 "	380 mm	14.961 in	Box	Flame Retardant Hinged Latches Lockable Sealing Gasket	130 mm	5.118 in	UL94 5VA UL94 HB UL94 V-0	Hinged Door Stainless Steel Latch	1064 cm˛	165 in˛	Plastic Polycarbonate/Fiberglass	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Clear Cover Light Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.76

Description

General part information

BC-CTP Series

Box Plastic, Polycarbonate/Fiberglass Light Gray, Clear Cover Hinged Door, Stainless Steel Latch 11.811" L x 7.874" W (300.00mm x 200.00mm) X 5.906" (150.00mm)
