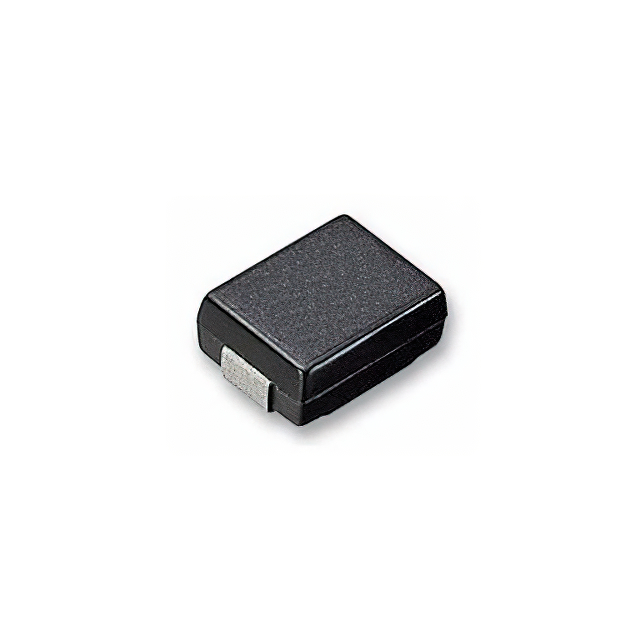

MVS4032P180K

Active

Meritek

VARISTOR 4032 18V 300A 2SMD JLEA

Search across all available documentation for this part.

Active

Meritek

VARISTOR 4032 18V 300A 2SMD JLEA

Technical Specifications

Parameters and characteristics for this part

Part	Maximum DC Volts [Max]	Number of Circuits	Package / Case	Mounting Type	Current - Surge	Varistor Voltage (Typ)	Capacitance @ Frequency	Energy	Maximum AC Volts [Max]	Varistor Voltage (Min) [Min]	Varistor Voltage (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Meritek MVS4032P220K	18 V	1	2-SMD J-Lead	Surface Mount MLCV	300 A	22 V	2300 pF	1.3 J	14 V	20 V	24 V	85 °C	-40 °C
Meritek MVS4032P331K		1	2-SMD J-Lead	Surface Mount MLCV	1.2 kA	330 V	120 pF	22 J	215 V	297 V	363 V	85 °C	-40 °C
Meritek MVS4032P681K	560 V	1	2-SMD J-Lead	Surface Mount MLCV	1.2 kA	680 V	55 pF	35 J	420 V	612 V	748 V	85 °C	-40 °C
Meritek MVS4032P201K	170 V	1	2-SMD J-Lead	Surface Mount MLCV	1.2 kA	200 V	200 pF	15 J	130 V	180 V	220 V	85 °C	-40 °C
Meritek MVS4032P221K	180 V	1	2-SMD J-Lead	Surface Mount MLCV	1.2 kA	220 V	180 pF	18 J	140 V	198 V	242 V	85 °C	-40 °C
Meritek MVS4032P180K	14 V	1	2-SMD J-Lead	Surface Mount MLCV	300 A	18 V	2750 pF	1.1 J	11 V	16 V	20 V	85 °C	-40 °C
Meritek MVS4032P680K	56 V	1	2-SMD J-Lead	Surface Mount MLCV	300 A		900 pF	4.1 J	40 V	61 V	75 V	85 °C	-40 °C
Meritek MVS4032P241K	200 V	1	2-SMD J-Lead	Surface Mount MLCV	1.2 kA	240 V	170 pF	18.5 J	150 V	216 V	264 V	85 °C	-40 °C
Meritek MVS4032P361K	300 V	1	2-SMD J-Lead	Surface Mount MLCV	1.2 kA	360 V	115 pF	23 J	230 V	324 V	396 V	85 °C	-40 °C
Meritek MVS4032P560K	45 V	1	2-SMD J-Lead	Surface Mount MLCV	300 A	56 V	1050 pF	3.4 J	35 V	50 V	62 V	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 V 300 A Varistor 1 Circuit Surface Mount, MLCV 2-SMD, J-Lead
