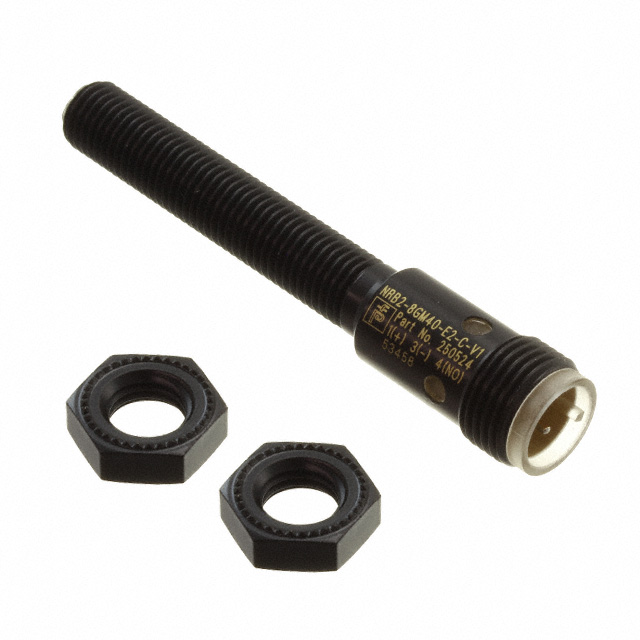

NRB2-8GM40-E2-C-V1

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, M12, 2 MM, PNP, 10 VDC TO 30 VDC

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, M12, 2 MM, PNP, 10 VDC TO 30 VDC

Technical Specifications

Parameters and characteristics for this part

Specification	NRB2-8GM40-E2-C-V1

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Polytetrafluoroethylene (PTFE)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M8
Sensing Distance	0.079 in
Sensing Distance	2 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Ingress Protection	Material - Body	Sensing Distance	Sensing Distance	Shielding	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Termination Style	Sensor Type	Indicator [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type
PEPPERL+FUCHS NRB2-8GM40-E2-C-V1	IP67	Polytetrafluoroethylene (PTFE)	0.079 in	2 mm	Unshielded	30 VDC	10 VDC	Cylinder Threaded - M8	Connector	Inductive	LED	70 °C	-25 °C	PNP-NO 3-Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE PROXIMITY SENSOR, M12, 2 MM, PNP, 10 VDC TO 30 VDC
