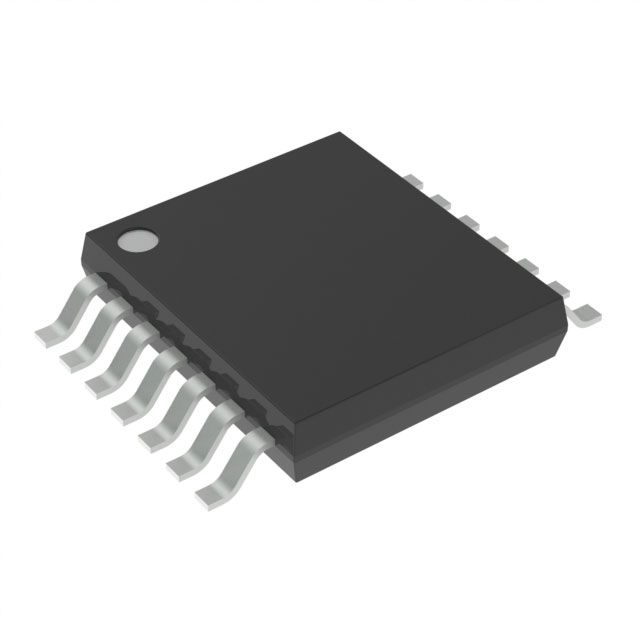

RTQ2132BGCP-QT
ActiveRichtek USA Inc.
IC REG BUCK ADJ 1.2A 14TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RTQ2132BGCP-QT
ActiveRichtek USA Inc.
IC REG BUCK ADJ 1.2A 14TSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RTQ2132BGCP-QT |
|---|---|
| Current - Output | 1.2 A |
| Frequency - Switching | 2.1 MHz |
| Function | Step-Down |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Qualification | AEC-Q100 |
| Supplier Device Package | 14-TSSOP-EP |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output (Max) | 36 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.57 | |
| 10 | $ 6.84 | |||
| 25 | $ 6.52 | |||
| 100 | $ 5.66 | |||
| 250 | $ 5.41 | |||
| Digi-Reel® | 1 | $ 7.57 | ||
| 10 | $ 6.84 | |||
| 25 | $ 6.52 | |||
| 100 | $ 5.66 | |||
| 250 | $ 5.41 | |||
Description
General part information
RTQ2132 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1.2A 14-TSSOP (0.173", 4.40mm Width) Exposed Pad
