325-052-500-108
ActiveEDAC Inc.
CONN EDGE SINGLE FML 52POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
325-052-500-108
ActiveEDAC Inc.
CONN EDGE SINGLE FML 52POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 325-052-500-108 |
|---|---|
| Card Thickness | 3.18 mm |
| Card Thickness | 0.125 in |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 52 |
| Number of Positions/Bay/Row [custom] | 52 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
325-052 Series
| Part | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination Rows | Number of Rows | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Read Out | Contact Type | Number of Positions/Bay/Row [custom] | Card Type | Contact Material | Pitch [x] | Pitch [x] | Contact Finish | Mounting Type | Color | Card Thickness | Card Thickness | Termination | Number of Positions | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.16 in | Flush Mount Top Opening Unthreaded | 4.06 mm | 1 | 1 | Diallyl Phthalate (DAP) | 125 °C | -65 ░C | Female | Single | Cantilever | 52 | Non Specified - Single Edge | Copper Alloy | 2.54 mm | 0.1 in | Gold | Through Hole | Green | 3.18 mm | 0.125 in | Wire Wrap | 52 | 10 Áin | 0.25 Ám |
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 1 | Diallyl Phthalate (DAP) | 125 °C | -65 ░C | Female | Single | Cantilever | 52 | Non Specified - Single Edge | Copper Alloy | 2.54 mm | 0.1 in | Gold | Through Hole | Green | 3.18 mm | 0.125 in | Solder Eyelet(s) | 52 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 0.16 in | Flush Mount Top Opening Unthreaded | 4.06 mm | 2 | 2 | Diallyl Phthalate (DAP) | 125 °C | -65 ░C | Female | Dual | Cantilever | 26 | Non Specified - Dual Edge | Copper Alloy | 2.54 mm | 0.1 in | Gold | Through Hole | Green | 3.18 mm | 0.125 in | Solder | 52 | 10 Áin | 0.25 Ám |
EDAC Inc. | 0.16 in | Flush Mount Top Opening Unthreaded | 4.06 mm | 2 | 2 | Diallyl Phthalate (DAP) | 125 °C | -65 ░C | Female | Dual | Cantilever | 26 | Non Specified - Dual Edge | Copper Alloy | 2.54 mm | 0.1 in | Gold | Through Hole | Green | 3.18 mm | 0.125 in | Solder Eyelet(s) | 52 | 10 Áin | 0.25 Ám |
EDAC Inc. | 1 | 1 | Diallyl Phthalate (DAP) | 125 °C | -65 ░C | Female | Single | Cantilever | 52 | Non Specified - Single Edge | Copper Alloy | 2.54 mm | 0.1 in | Gold | Through Hole | Green | 3.18 mm | 0.125 in | Solder | 52 | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 0.16 in | Flush Mount Top Opening Unthreaded | 4.06 mm | 1 | 1 | Diallyl Phthalate (DAP) | 125 °C | -65 ░C | Female | Single | Cantilever | 52 | Non Specified - Single Edge | Copper Alloy | 2.54 mm | 0.1 in | Gold | Through Hole | Green | 3.18 mm | 0.125 in | Solder | 52 | 10 Áin | 0.25 Ám |
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | 1 | 1 | Diallyl Phthalate (DAP) | 125 °C | -65 ░C | Female | Single | Cantilever | 52 | Non Specified - Single Edge | Copper Alloy | 2.54 mm | 0.1 in | Gold | Through Hole | Green | 3.18 mm | 0.125 in | Wire Wrap | 52 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 2 | 2 | Diallyl Phthalate (DAP) | 125 °C | -65 ░C | Female | Dual | Cantilever | 26 | Non Specified - Dual Edge | Copper Alloy | 2.54 mm | 0.1 in | Gold | Through Hole | Green | 3.18 mm | 0.125 in | Solder Eyelet(s) | 52 | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 2 | Diallyl Phthalate (DAP) | 125 °C | -65 ░C | Female | Dual | Cantilever | 26 | Non Specified - Dual Edge | Copper Alloy | 2.54 mm | 0.1 in | Gold | Through Hole | Green | 3.18 mm | 0.125 in | Wire Wrap | 52 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 0.16 in | Flush Mount Top Opening Unthreaded | 4.06 mm | 1 | 1 | Diallyl Phthalate (DAP) | 125 °C | -65 ░C | Female | Single | Cantilever | 52 | Non Specified - Single Edge | Copper Alloy | 2.54 mm | 0.1 in | Gold | Through Hole | Green | 3.18 mm | 0.125 in | Solder Eyelet(s) | 52 | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.06 | |
Description
General part information
325-052 Series

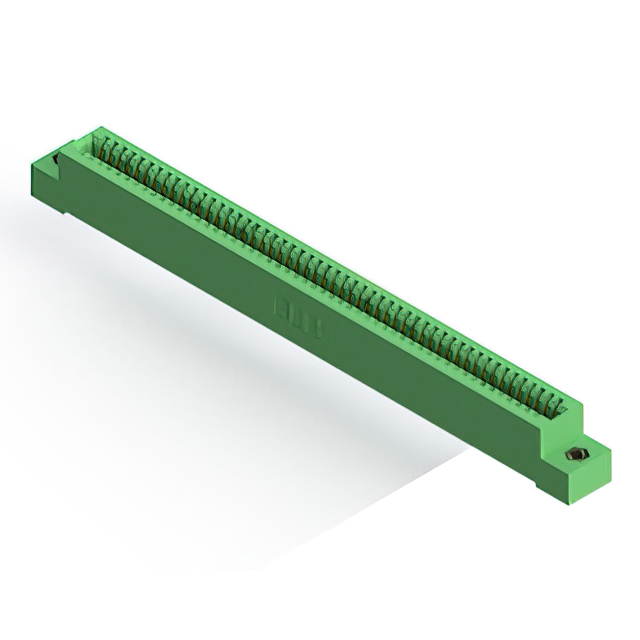

52 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
