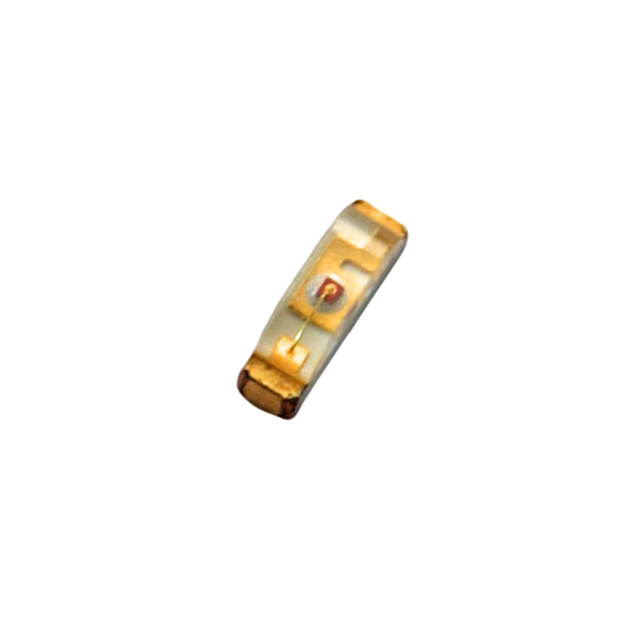

QBLP612-YG
ActiveQT Brightek (QTB)
LED YLW-GRN CLEAR 0802 SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBLP612-YG
ActiveQT Brightek (QTB)
LED YLW-GRN CLEAR 0802 SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBLP612-YG |
|---|---|
| Color | Yellow-Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 0.6 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.7 mm |
| Lens Size [y] | 0.6 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 15 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 2.1 mm |
| Size / Dimension [y] | 1 mm |
| Supplier Device Package | 0802 |
| Viewing Angle | 150 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.34 | |
| Digi-Reel® | 1 | $ 0.34 | ||
| Tape & Reel (TR) | 4000 | $ 0.08 | ||
| 8000 | $ 0.07 | |||
| 12000 | $ 0.06 | |||
| 28000 | $ 0.06 | |||
| 100000 | $ 0.05 | |||
Description
General part information
QBLP612 Series
Yellow-Green 570nm LED Indication - Discrete 2V 2-SMD, No Lead
