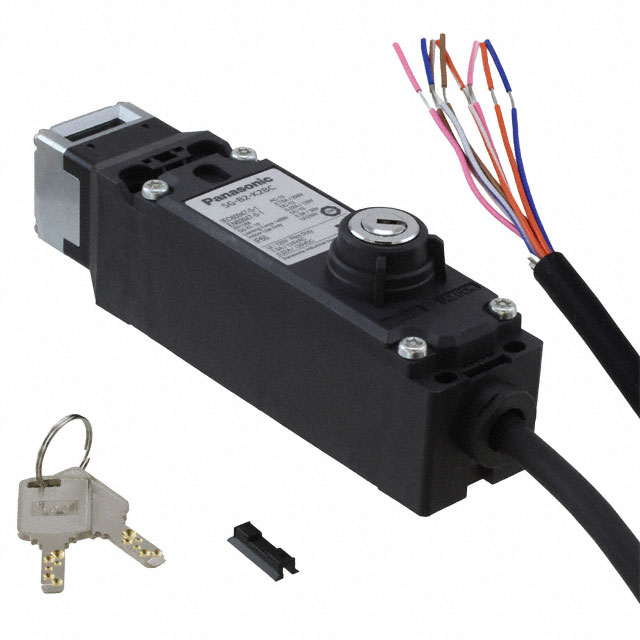

SG-B2-K2BC-5

Active

Panasonic Industrial Automation Sales

INTERLOCK KEY LOCKING DPST

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

INTERLOCK KEY LOCKING DPST

Technical Specifications

Parameters and characteristics for this part

Specification	SG-B2-K2BC-5

Actuator Type	Panel Disconnect
Approval Agency	cURus, CE, TUV
Circuit	DPST-NO/NC
Current Rating (Amps)	2.5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Termination Style	Cable Leads
Type	Key Locking
Voltage Rating	125 VAC, 30 VDC

Part	Current Rating (Amps)	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage Rating	Type	Circuit	Termination Style	Ingress Protection
Panasonic Industrial Automation Sales SG-B2-K2BC-5	2.5 A	Panel Disconnect	70 °C	-25 °C	CE cURus TUV	30 VDC 125 VAC	Key Locking	DPST-NO/NC	Cable Leads	IP65 - Dust Tight Water Resistant
Panasonic Industrial Automation Sales SG-B2-K2AD-5	2.5 A	Panel Disconnect	70 °C	-25 °C	CE cURus TUV	30 VDC 125 VAC	Key Locking	DPST-NC	Cable Leads	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 380.00

General part information

INTERLOCK KEY LOCKING DPST

Technical documentation and resources

No documents available
