LM3691TL-1.2/NOPB
ActiveNational Semiconductor

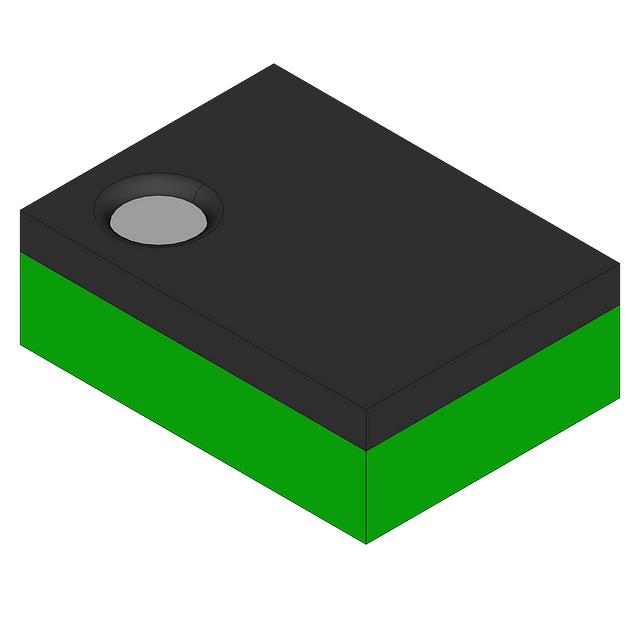

IC REG BUCK 1.2V 1A 6DSBGA
Deep-Dive with AI
Search across all available documentation for this part.
LM3691TL-1.2/NOPB
ActiveNational Semiconductor
IC REG BUCK 1.2V 1A 6DSBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LM3691TL-1.2/NOPB |
|---|---|
| Current - Output | 1 A |
| Frequency - Switching | 4 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | DSBGA, 6-WFBGA |
| Supplier Device Package | 6-DSBGA (1.5x1.3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.3 V |
| Voltage - Output (Min/Fixed) | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 304 | $ 0.99 | |
| Cut Tape (CT) | 1 | $ 2.04 | ||
| 10 | $ 1.83 | |||
| 25 | $ 1.73 | |||
| 100 | $ 1.47 | |||
| Digi-Reel® | 1 | $ 2.04 | ||
| 10 | $ 1.83 | |||
| 25 | $ 1.73 | |||
| 100 | $ 1.47 | |||
| Tape & Reel (TR) | 250 | $ 1.38 | ||
| 500 | $ 1.21 | |||
| 1250 | $ 1.00 | |||
| 2500 | $ 0.93 | |||
| 6250 | $ 0.90 | |||
Description
General part information
LM3691 Series
Buck Switching Regulator IC Positive Fixed 1.2V 1 Output 1A 6-WFBGA, DSBGA
