SMF48A_R1_00001

Active

Panjit International Inc.

SURFACE MOUNT TRANSIENT VOLTAGE

Search across all available documentation for this part.

Active

Panjit International Inc.

SURFACE MOUNT TRANSIENT VOLTAGE

Technical Specifications

Parameters and characteristics for this part

Specification	SMF48A_R1_00001

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	2.6 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

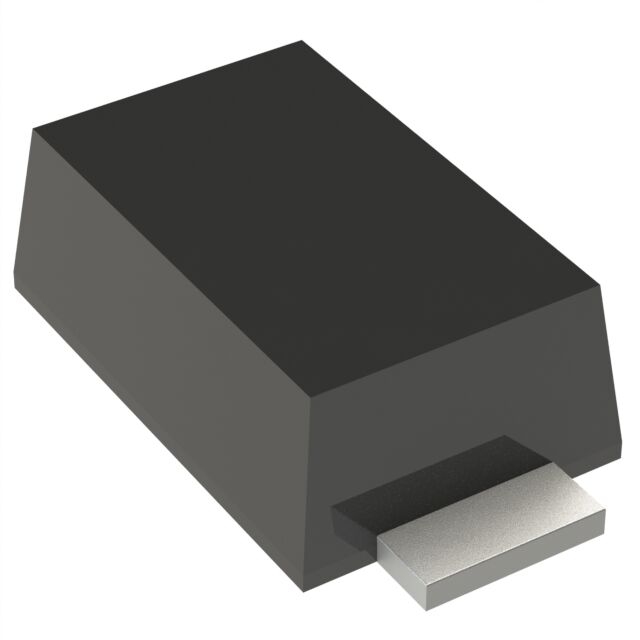

Package / Case	SOD-123F
Power - Peak Pulse	200 W
Power Line Protection	False
Supplier Device Package	SOD-123FL
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	53.3 V
Voltage - Clamping (Max) @ Ipp [Max]	77.4 V
Voltage - Reverse Standoff (Typ)	48 V

Part	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Package / Case	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Type	Voltage - Clamping (Max) @ Ipp [Max]	Unidirectional Channels [custom]	Applications	Power - Peak Pulse	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Power Line Protection
Panjit International Inc. SMF48A_R1_00001	48 V	SOD-123FL	SOD-123F	53.3 V	2.6 A	Zener	77.4 V	1	General Purpose	200 W	Surface Mount	-55 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

77.4V Clamp 2.6A Ipp Tvs Diode Surface Mount SOD-123FL
