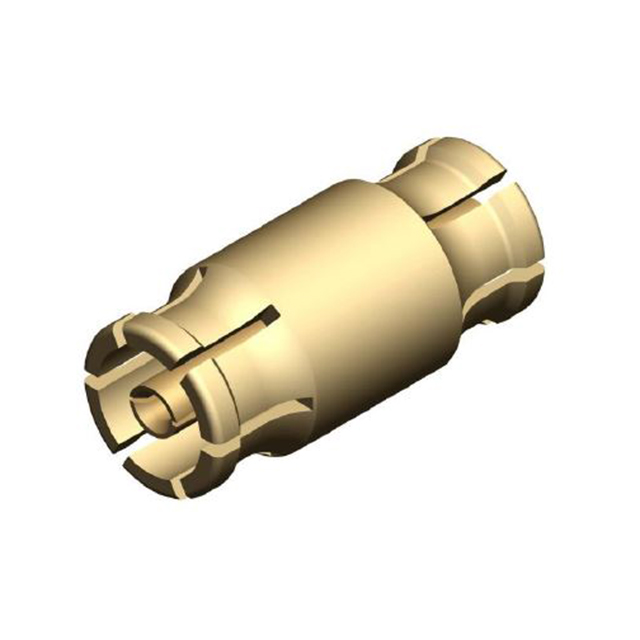

W1K10F-K00D3

Active

Rosenberger

ADAPT WSMP JACK - WSMP JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT WSMP JACK - WSMP JACK

Technical Specifications

Parameters and characteristics for this part

Specification	W1K10F-K00D3

Adapter Series	WSMP to WSMP
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	WSMP Jack, Female Socket
Convert To (Adapter End)	WSMP Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	100 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Style	Convert To (Adapter End)	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Type	Conversion Type	Center Contact Material	Adapter Series	Center Contact Plating	Impedance	Fastening Type	Body Finish	Dielectric Material	Center Gender	Convert From (Adapter End)	Frequency - Max [Max]	Mounting Type
Rosenberger W1K10F-K00D3	Straight	Female Socket WSMP Jack	Beryllium Copper	165 °C	-55 °C	Jack to Jack	Same Series	Beryllium Copper	WSMP to WSMP	Gold	50 Ohms	Snap-On	Gold	Polytetrafluoroethylene (PTFE)	Female to Female	WSMP Jack Female Socket	100 GHz	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector WSMP Jack, Female Socket To WSMP Jack, Female Socket 50 Ohms
