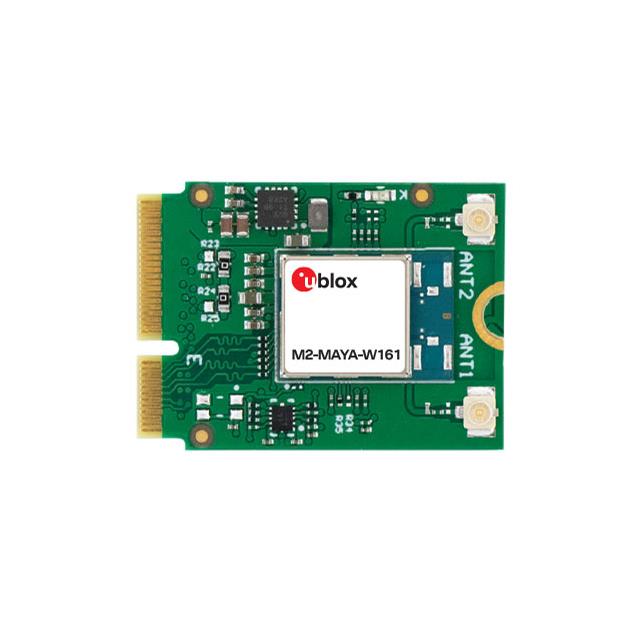

M2-MAYA-W161-10C
Activeu-blox
RF TXRX MOD BT I U.FL (X3) CARD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M2-MAYA-W161-10C
Activeu-blox
RF TXRX MOD BT I U.FL (X3) CARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2-MAYA-W161-10C |
|---|---|
| Antenna Type | U.FL, PCB (x3) |
| Data Rate | 150 Mbps |
| Frequency | 5 GHz, 2.4 GHz |
| Mounting Type | Card Edge |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 18 dBm |
| Protocol | Bluetooth v5.2 + EDR, 802.11b, 802.11a, 802.11g, 802.11n |
| RF Family/Standard | WiFi, Bluetooth |
| Serial Interfaces | I2S, GPIO, SDIO, HCI, UART, PCM |
| Utilized IC / Part | IW416 |
| Voltage - Supply | 1.8 V, 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 35.00 | |
Description
General part information
M2-MAYA Series
Bluetooth, WiFi 802.11a/b/g/n, Bluetooth v5.2 + EDR Transceiver Module 2.4GHz, 5GHz U.FL, PCB (x3) Card Edge
