321-50510

Obsolete

HELLERMANNTYTON

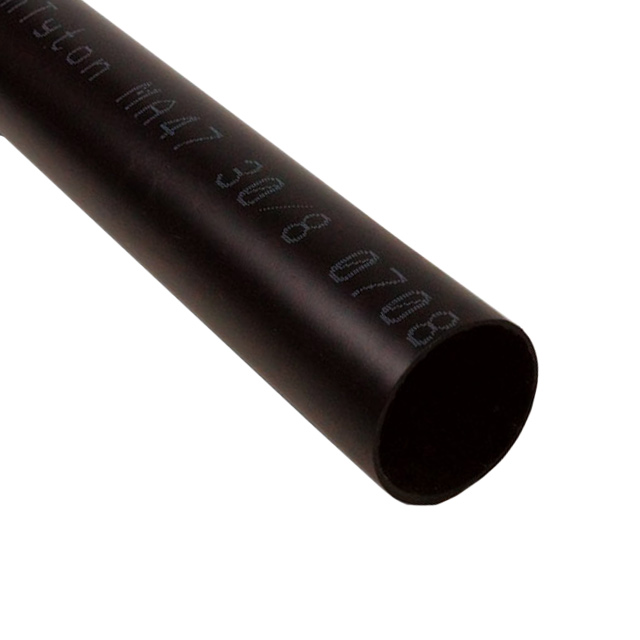

HEATSHRINK 3.5:1 51MMX1M 1=2/PKG

Search across all available documentation for this part.

Obsolete

HELLERMANNTYTON

HEATSHRINK 3.5:1 51MMX1M 1=2/PKG

Technical Specifications

Parameters and characteristics for this part

Specification	321-50510

Color	Black
Features	Corrosion Resistant, Adhesive Lined, Moisture Resistant
Inner Diameter - Recovered [diameter]	16 mm
Inner Diameter - Recovered [diameter]	0.63 "
Inner Diameter - Supplied [diameter]	2.008 in
Inner Diameter - Supplied [diameter]	51 mm
Length [x]	1 m
Length [x]	3.28 ft
Material	Polyolefin (PO), Irradiated, Halogen Free
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.161 "
Recovered Wall Thickness	4.1 mm
Shrink Temperature	120 °C
Shrinkage Ratio [Max]	3.5
Shrinkage Ratio [Min]	1
Type	Semi-Flexible, Tubing

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Color	Features	Shrinkage Ratio [Max]	Shrinkage Ratio [Min]	Type	Inner Diameter - Recovered	Inner Diameter - Recovered
HELLERMANNTYTON 321-50510	16 mm	0.63 "	1 m	3.28 ft	Polyolefin (PO) Irradiated Halogen Free	-55 °C	110 °C	2.008 in	51 mm	0.161 "	4.1 mm	120 °C	Black	Adhesive Lined Corrosion Resistant Moisture Resistant	3.5	1	Semi-Flexible Tubing
HELLERMANNTYTON 321-50330	8 mm	0.315 in	1 m	3.28 ft	Polyolefin (PO) Irradiated Halogen Free	-55 °C	110 °C	1.3 in	33.02 mm	0.126 "	3.2 mm	120 °C	Black	Adhesive Lined Corrosion Resistant Moisture Resistant	3.5	1	Semi-Flexible Tubing
HELLERMANNTYTON 321-50011			1 m	3.28 ft	Polyolefin (PO) Irradiated Halogen Free	-55 °C	110 °C			0.106 "	2.7 mm	120 °C	Black	Adhesive Lined Corrosion Resistant Moisture Resistant	3.5	1	Semi-Flexible Tubing	5.99 mm	0.236 in
HELLERMANNTYTON 321-50016	25.4 mm	1 in	1 m	3.28 ft	Polyolefin (PO) Irradiated Halogen Free	-55 °C	110 °C	3.346 in	84.99 mm	0.169 in	4.3 mm	120 °C	Black	Adhesive Lined Corrosion Resistant Moisture Resistant	3.5	1	Semi-Flexible Tubing
HELLERMANNTYTON 321-50130	3.99 mm	0.157 in	1 m	3.28 ft	Polyolefin (PO) Irradiated Halogen Free	-55 °C	110 °C	0.512 "	13 mm	0.094 "	2.4 mm	120 °C	Black	Adhesive Lined Corrosion Resistant Moisture Resistant	3.5	1	Semi-Flexible Tubing
