MA1270.A.LBICGTY.005

Active

TAOGLAS

ANTENNA RAPTORIII 7IN1 3M COMBO

Search across all available documentation for this part.

Active

TAOGLAS

ANTENNA RAPTORIII 7IN1 3M COMBO

Technical Specifications

Parameters and characteristics for this part

Specification	MA1270.A.LBICGTY.005

Antenna Type	Dome
Applications	5G, GPS, GNSS, 4G, Galileo, GLONASS, 3G, Beidou, LTE, HSPA, HSPA+, WCDMA, Wi-Fi
Features	LNA, Filter, Cable - 3m
Frequency (Center/Band)	5.5 GHz, 1.561 GHz, 98 MHz, 2.59 GHz, 892 MHz, 5.5375 GHz, 1.602 GHz, 1.4725 GHz, 3.55 GHz, 2.45 GHz, 657.5 MHz, 752 MHz, 1.575 GHz, 425 MHz, 1.955 GHz, 1.07 MHz
Frequency Group	UHF
Frequency Group [Max]	2 GHz
Frequency Group [Min]	1 GHz
Frequency Range [Max]	2.69 GHz, 1.605 MHz, 5.925 GHz, 698 MHz, 2.5 GHz, 806 MHz, 470 MHz, 3.8 GHz, 108 MHz, 960 MHz, 5.85 GHz, 1.518 GHz, 2.2 GHz
Frequency Range [Min]	2.4 GHz, 3.3 GHz, 88 MHz, 1.71 GHz, 824 MHz, 617 MHz, 5.15 GHz, 698 MHz, 380 MHz, 1.427 GHz, 535 kHz, 2.49 GHz
Gain	1.8 dBi, 1.6 dBi, 0.6 dBi, 3.6 dBi, 2.8 dBi, 0 dBi, -3.7 dBi, -1.7 dBi, 0.9 dBi, 3.7 dBi, 3.3 dBi, 0.4 dBi, -1.9 dBi
Height (Max) [Max]	3.661 "
Height (Max) [Max]	92.98 mm
Ingress Protection	IP67
Number of Bands	16
Power - Max [Max]	10 W
Return Loss	-11 dB
RF Family/Standard	Navigation, WiFi, Cellular
VSWR	3.7, 2

Part	Features	Power - Max [Max]	Return Loss	Ingress Protection	VSWR	Antenna Type	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Number of Bands	Frequency (Center/Band)	RF Family/Standard	Gain	Applications	Height (Max) [Max]	Height (Max) [Max]	Frequency Range [Min]	Frequency Range [Max]
TAOGLAS MA1270.A.LBICGTY.005	Cable - 3m Filter LNA	10 W	-11 dB	IP67	2 3.7	Dome	2 GHz	1 GHz	UHF	16	1.07 MHz 1.4725 GHz 1.561 GHz 1.575 GHz 1.602 GHz 1.955 GHz 2.45 GHz 2.59 GHz 3.55 GHz 5.5 GHz 5.5375 GHz 98 MHz 425 MHz 657.5 MHz 752 MHz 892 MHz	Cellular Navigation WiFi	-3.7 dBi -1.9 dBi -1.7 dBi 0 dBi 0.4 dBi 0.6 dBi 0.9 dBi 1.6 dBi 1.8 dBi 2.8 dBi 3.3 dBi 3.6 dBi 3.7 dBi	3G 4G 5G Beidou Galileo GLONASS GNSS GPS HSPA HSPA+ LTE WCDMA Wi-Fi	3.661 "	92.98 mm	1.427 GHz 1.71 GHz 2.4 GHz 2.49 GHz 3.3 GHz 5.15 GHz 88 MHz 380 MHz 535 kHz 617 MHz 698 MHz 824 MHz	1.518 GHz 1.605 MHz 2.2 GHz 2.5 GHz 2.69 GHz 3.8 GHz 5.85 GHz 5.925 GHz 108 MHz 470 MHz 698 MHz 806 MHz 960 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 297.38

General part information

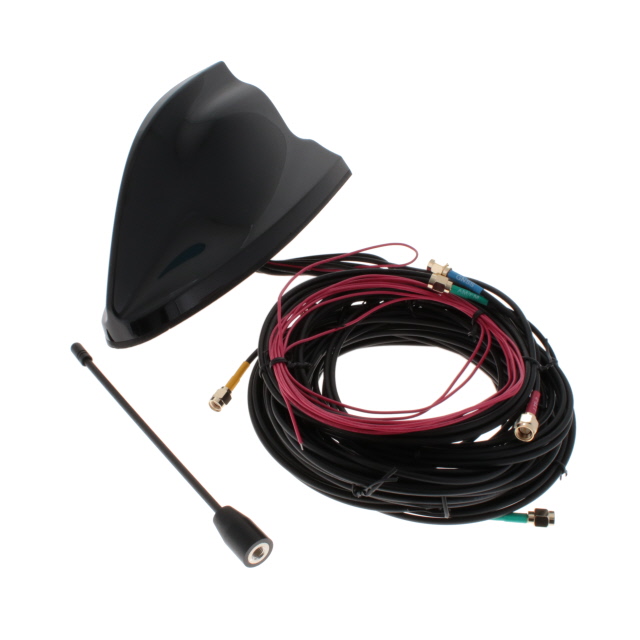

RF ANTENNA 3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS, HSPA, HSPA+, LTE, WCDMA, Wi-Fi Dome SMA Male Panel Mount
