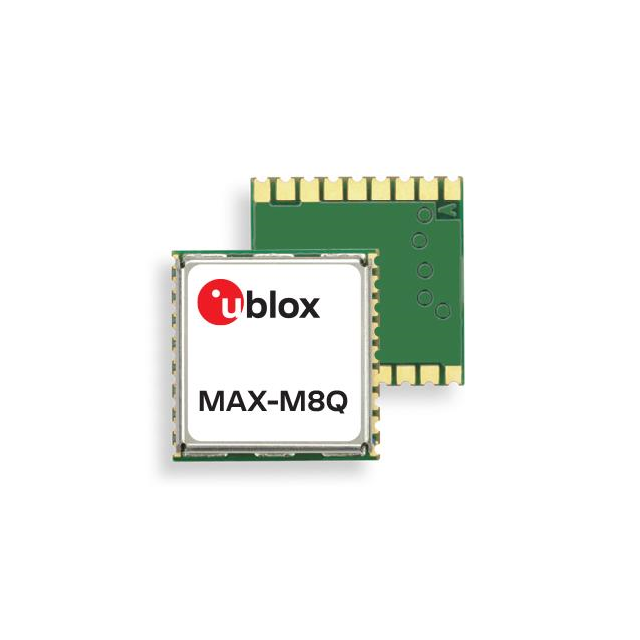

MAX-8Q-0
Activeu-blox
RF RX GLONASS/GNSS/GPS 1.575GHZ
Deep-Dive with AI
Search across all available documentation for this part.
MAX-8Q-0
Activeu-blox
RF RX GLONASS/GNSS/GPS 1.575GHZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MAX-8Q-0 |
|---|---|
| Applications | General Purpose |
| Data Interface | I2C, UART |
| Frequency | 1.575 GHz |
| Modulation or Protocol | GNSS, GLONASS, GPS |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 18-SMD Module |
| Sensitivity | -166 dBm |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 22.58 | |
| Digi-Reel® | 1 | $ 22.58 | ||
| Tape & Reel (TR) | 500 | $ 14.74 | ||
Description
General part information
MAX-8Q Series
MAX-8 RF Receiver GLONASS, GNSS, GPS 1.575GHz -166dBm
