0311010041

Active

Molex

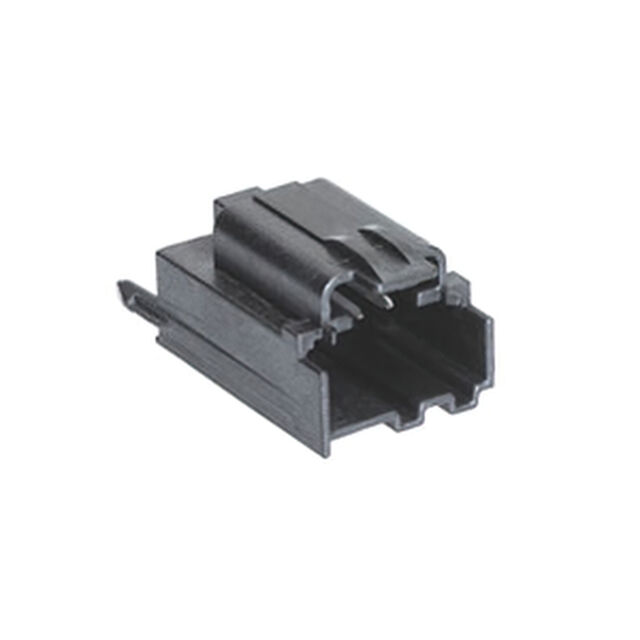

CONN SHROUDED HEADER (4 SIDES) HDR 4 POS 2.54MM SOLDER RA THRU-HOLE H-DAC 64 TRAY

Search across all available documentation for this part.

Active

Molex

CONN SHROUDED HEADER (4 SIDES) HDR 4 POS 2.54MM SOLDER RA THRU-HOLE H-DAC 64 TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	0311010041

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	60 Áin
Contact Finish Thickness - Mating	1.52 Ám
Contact Length - Post	0.145 in
Contact Length - Post	3.68 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock
Insulation Color	Gray
Insulation Height	21.69 mm
Insulation Height	0.854 "
Insulation Material	Syndiotactic Polystyrene (SPS)
Mated Stacking Heights	32.25 mm
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Shrouding	Insulation Height	Insulation Height	Number of Positions	Style	Mated Stacking Heights	Insulation Material	Connector Type	Contact Length - Post	Contact Length - Post	Contact Material	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Pitch - Mating	Pitch - Mating	Contact Type	Number of Rows	Contact Finish - Post	Insulation Color	Fastening Type	Contact Shape	Termination	Mounting Type
Molex 0311010041	Shrouded - 4 Wall	21.69 mm	0.854 "	4	Board to Cable/Wire	32.25 mm	Syndiotactic Polystyrene (SPS)	Header	0.145 in	3.68 mm	Brass	All	60 Áin	1.52 Ám	Automotive	0.1 in	2.54 mm	Male Pin	1	Tin	Gray	Latch Lock	Square	Solder	Through Hole
Molex 0311011010
Molex 0311010040	Shrouded - 4 Wall	21.69 mm	0.854 "	4	Board to Cable/Wire	32.25 mm	Syndiotactic Polystyrene (SPS)	Header	0.145 in	3.68 mm	Brass	All	60 Áin	1.52 Ám	Automotive	0.1 in	2.54 mm	Male Pin	1	Tin	Black	Latch Lock	Square	Solder	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.86
Digikey	Tray	1936	$ 1.76

General part information

Connector Header Through Hole 4 position 0.100" (2.54mm)
