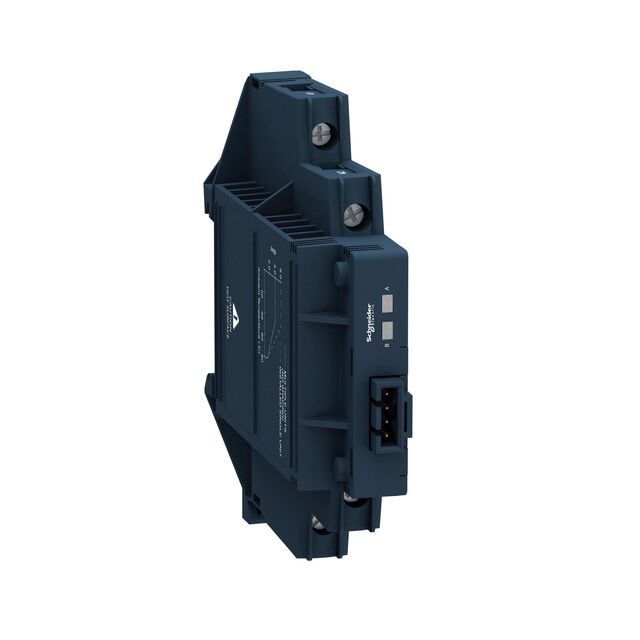

SSM2A16BDR
ActiveSQUARE D BY SCHNEIDER ELECTRIC
SOLID STATE RELAY, DPST-NO, 6 A, 280 VAC, DIN RAIL, SCREW, RANDOM TURN ON
Deep-Dive with AI
Search across all available documentation for this part.
SSM2A16BDR
ActiveSQUARE D BY SCHNEIDER ELECTRIC
SOLID STATE RELAY, DPST-NO, 6 A, 280 VAC, DIN RAIL, SCREW, RANDOM TURN ON
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSM2A16BDR |
|---|---|
| Approval Agency | CSA, UL |
| Load Current | 6 A |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SSM2A Series
Solid State SPST-NO (1 Form A) Module
