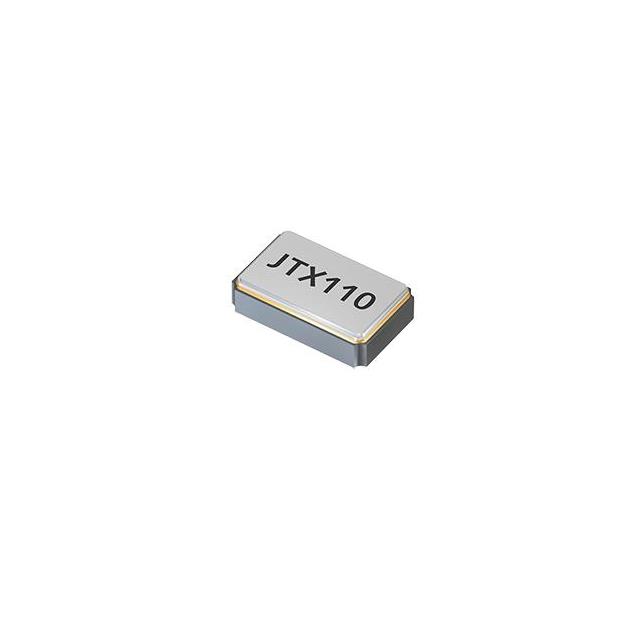

Q 0,032768-JTX110-7-20-T1-LF

Active

Jauch Quartz

CRYSTAL 32.7680KHZ 7PF SMD

Search across all available documentation for this part.

Active

Jauch Quartz

CRYSTAL 32.7680KHZ 7PF SMD

Technical Specifications

Parameters and characteristics for this part

Specification	Q 0,032768-JTX110-7-20-T1-LF

ESR (Equivalent Series Resistance)	80 kOhms
Frequency	32.768 kHz
Frequency Tolerance	20 ppm
Height - Seated (Max) [Max] [z]	0.5 mm
Height - Seated (Max) [Max] [z]	0.02 "
Load Capacitance	7 pF
Mounting Type	Surface Mount
Operating Mode	Fundamental
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	2-SMD, No Lead
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.039 "
Size / Dimension [y]	1 mm
Type	kHz Crystal (Tuning Fork)

Part	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Type	Operating Mode	Frequency Tolerance	Load Capacitance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case
Jauch Quartz Q 0,032768-JTX110-7-20-T1-LF	32.768 kHz	85 °C	-40 °C	kHz Crystal (Tuning Fork)	Fundamental	20 ppm	7 pF	Surface Mount	0.5 mm	0.02 "	80 kOhms	0.039 "	0.063 in	1 mm	1.6 mm	2-SMD No Lead
Jauch Quartz Q 0,032768-JTX110-12,5-20-T1-90K-LF	32.768 kHz	85 °C	-40 °C	kHz Crystal (Tuning Fork)	Fundamental	20 ppm	12.5 pF	Surface Mount	0.5 mm	0.02 "	90 kOhms	0.039 "	0.063 in	1 mm	1.6 mm	2-SMD No Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

32.768 kHz ±20ppm Crystal 7pF 80 kOhms 2-SMD, No Lead
