Q-2I03H0003009i
ActiveAmphenol Custom Cable
COAX CBL SMB TO N-TYPE 9"
Deep-Dive with AI
Search across all available documentation for this part.
Q-2I03H0003009i
ActiveAmphenol Custom Cable
COAX CBL SMB TO N-TYPE 9"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2I03H0003009i |
|---|---|
| 1st Connector | Right Angle, SMB Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 9 " |
| Length | 228.6 mm |
| Overall Impedance | 50 Ohms |
| Style | SMB to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 116.12 | |
| 25 | $ 113.86 | |||
| 50 | $ 111.60 | |||
| 100 | $ 109.34 | |||
| 250 | $ 107.08 | |||
Description
General part information
Q-2I03H0 Series

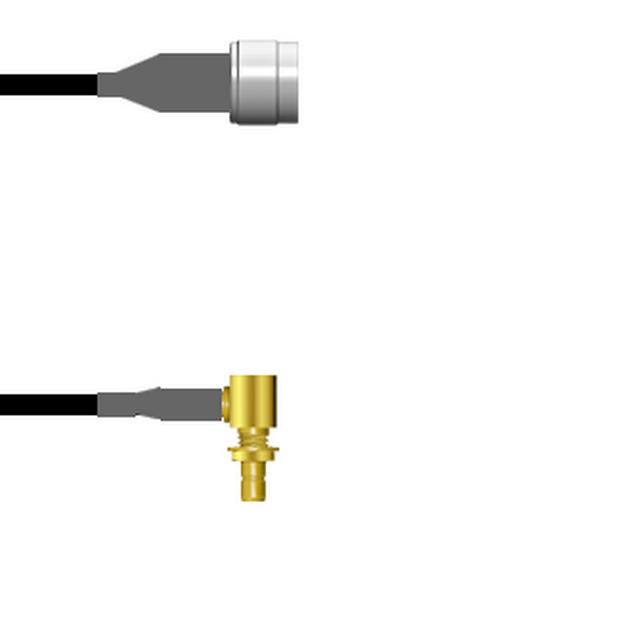

Cable Assembly Coaxial SMB to N-Type RG-174 9.000" (228.60mm)
Documents
Technical documentation and resources
No documents available
