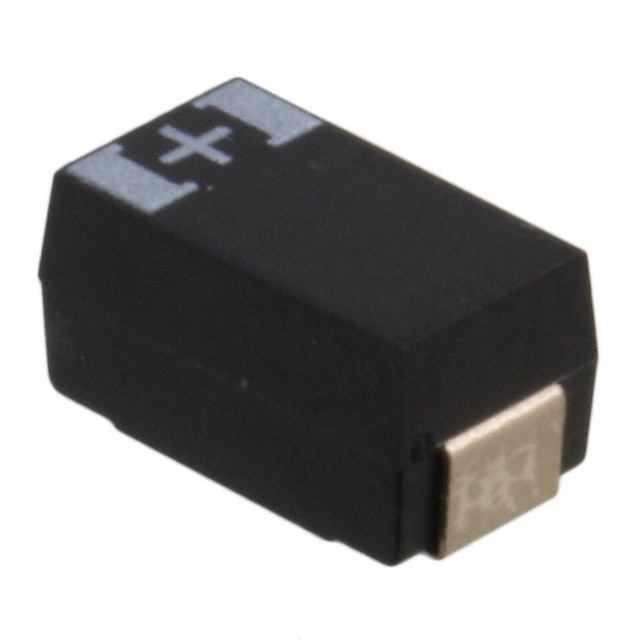

10TPB220M
ActivePanasonic Industrial Automation Sales
TANTALUM CAPACITOR, POLARIZED, TANTALUM (SOLID POLYMER), 10V, 20% +TOL, 20% -TOL, 220UF, SURFACE MOUNT, 2917, CHIP
Deep-Dive with AI
Search across all available documentation for this part.
10TPB220M
ActivePanasonic Industrial Automation Sales
TANTALUM CAPACITOR, POLARIZED, TANTALUM (SOLID POLYMER), 10V, 20% +TOL, 20% -TOL, 220UF, SURFACE MOUNT, 2917, CHIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10TPB220M |
|---|---|
| Capacitance | 220 µF |
| ESR (Equivalent Series Resistance) | 40 mOhm |
| Features | General Purpose |
| Height - Seated (Max) [Max] | 0.157 in |
| Height - Seated (Max) [Max] | 4 mm |
| Manufacturer Size Code | D4 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 7343 Metric |
| Package / Case | 2917 |
| Size / Dimension [x] | 0.287 " |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 4.3 mm |
| Size / Dimension [y] | 0.169 " |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.07 | |
| 10 | $ 1.59 | |||
| 50 | $ 1.46 | |||
| 100 | $ 1.21 | |||
| 500 | $ 0.97 | |||
| 1000 | $ 0.85 | |||
| Digi-Reel® | 1 | $ 2.07 | ||
| 10 | $ 1.59 | |||
| 50 | $ 1.46 | |||
| 100 | $ 1.21 | |||
| 500 | $ 0.97 | |||
| 1000 | $ 0.85 | |||
| Tape & Reel (TR) | 2000 | $ 0.82 | ||
| 4000 | $ 0.79 | |||
| 10000 | $ 0.77 | |||
Description
General part information
10TPB Series
220 µF Molded Tantalum Polymer Capacitor 10 V 2917 (7343 Metric) 40mOhm @ 100kHz
Documents
Technical documentation and resources
No documents available
