837-027-559-612
ActiveEDAC Inc.

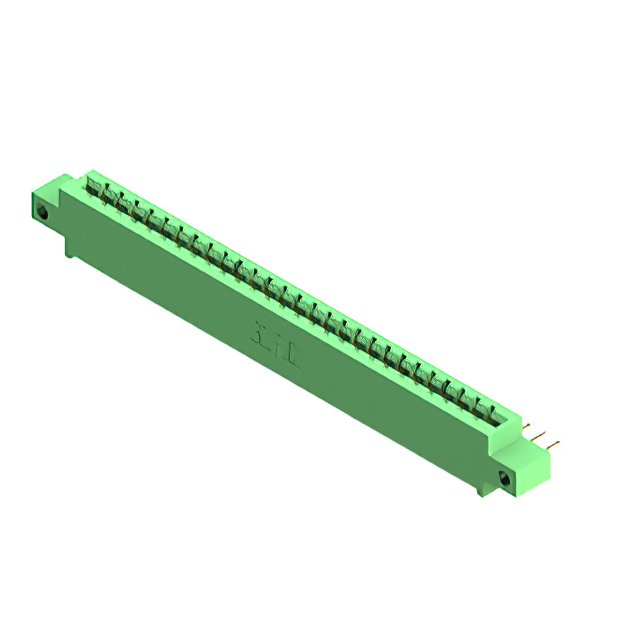

CONN EDGE SGL FMALE 27POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-027-559-612
ActiveEDAC Inc.
CONN EDGE SGL FMALE 27POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-027-559-612 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 27 |
| Number of Positions/Bay/Row [custom] | 27 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
837-027 Series
...
| Part | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Gender | Contact Type | Contact Finish | Read Out | Number of Positions/Bay/Row [custom] | Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Termination | Card Type | Number of Positions | Contact Material | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 1 | Female | Cantilever | Gold | Single | 27 | Green | 125 °C | -40 °C | 1 | Wire Wrap | Non Specified - Single Edge | 27 | Copper Alloy | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Through Hole | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 1 | Female | Cantilever | Gold | Single | 27 | Green | 125 °C | -40 °C | 1 | Solder | Non Specified - Single Edge | 27 | Copper Alloy | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Through Hole | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 1 | Female | Cantilever | Gold | Single | 27 | Green | 125 °C | -40 °C | 1 | Solder | Non Specified - Single Edge | 27 | Copper Alloy | Side Mount Opening Unthreaded | Through Hole | 3.25 mm | 0.128 in | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 1 | Female | Cantilever | Gold | Single | 27 | Green | 125 °C | -40 °C | 1 | Solder | Non Specified - Single Edge | 27 | Copper Alloy | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Through Hole | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 1 | Female | Cantilever | Gold | Single | 27 | Green | 125 °C | -40 °C | 1 | Wire Wrap | Non Specified - Single Edge | 27 | Copper Alloy | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Through Hole | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 1 | Female | Cantilever | Gold | Single | 27 | Green | 125 °C | -40 °C | 1 | Solder Eyelet(s) | Non Specified - Single Edge | 27 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Through Hole | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 1 | Female | Cantilever | Gold | Single | 27 | Green | 125 °C | -40 °C | 1 | Wire Wrap | Non Specified - Single Edge | 27 | Copper Alloy | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Through Hole | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 1 | Female | Cantilever | Gold | Single | 27 | Green | 125 °C | -40 °C | 1 | Wire Wrap | Non Specified - Single Edge | 27 | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 1 | Female | Cantilever | Gold | Single | 27 | Green | 125 °C | -40 °C | 1 | Solder | Non Specified - Single Edge | 27 | Copper Alloy | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Through Hole Right Angle | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 1 | Female | Cantilever | Gold | Single | 27 | Green | 125 °C | -40 °C | 1 | Solder | Non Specified - Single Edge | 27 | Copper Alloy | Side Mount Opening Unthreaded | Through Hole Right Angle | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 69.69 | |
Description
General part information
837-027 Series
27 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
