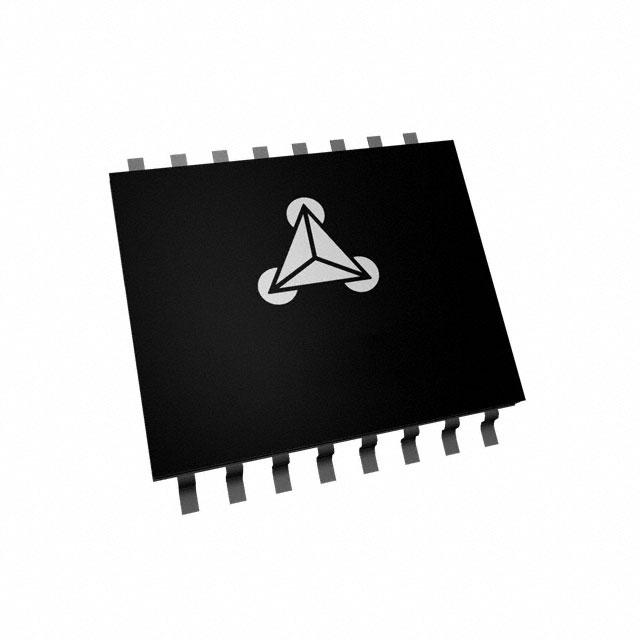

TMC4210-I

Active

Analog Devices Inc./Maxim Integrated

IC MTR DRV BIPOLAR 3.3-5V 16SSOP

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC MTR DRV BIPOLAR 3.3-5V 16SSOP

Technical Specifications

Parameters and characteristics for this part

Specification	TMC4210-I

Applications	General Purpose
Function	Controller - Commutation, Direction Management
Interface	SPI
Motor Type - Stepper	Bipolar
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Step/Direction
Package / Case	0.154 in
Package / Case	16-SSOP
Package / Case	3.9 mm
Step Resolution	>256
Supplier Device Package	16-SSOP
Technology	CMOS
Voltage - Supply [Max]	5 V
Voltage - Supply [Min]	3.3 V

Part	Interface	Supplier Device Package	Function	Motor Type - Stepper	Output Configuration	Package / Case	Package / Case	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Step Resolution	Technology
Analog Devices Inc./Maxim Integrated TMC4210-I	SPI	16-SSOP	Controller - Commutation Direction Management	Bipolar	Step/Direction	0.154 in	16-SSOP	3.9 mm	5 V	3.3 V	Surface Mount	105 °C	-40 °C	General Purpose	>256	CMOS
Analog Devices Inc./Maxim Integrated TMC4210-I-T	SPI	16-SSOP	Controller - Commutation Direction Management	Bipolar	Step/Direction	0.154 in	16-SSOP	3.9 mm	5 V	3.3 V	Surface Mount	105 °C	-40 °C	General Purpose	>256	CMOS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar Motor Driver CMOS SPI 16-SSOP
