L717DA15PST3
ActiveAmphenol ICC (Commercial Products)

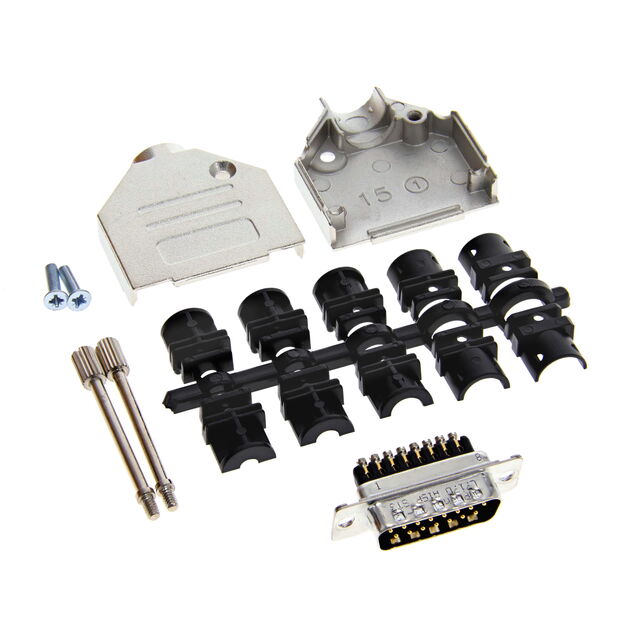

CONN D-SUB PLUG 15POS SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L717DA15PST3
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB PLUG 15POS SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L717DA15PST3 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 7.5 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 2 |
| Termination | Screw |
| Voltage Rating | 300 VDC |
| Wire Gauge | 18 AWG |
L717DA15 Series
| Part | Current Rating (Amps) | Number of Positions | Dielectric Material | Shell Size, Connector Layout | Features | Contact Material | Contact Finish | Connector Style | Backset Spacing | Backset Spacing | Flange Feature | Number of Rows | Termination | Mounting Type | Contact Type | Connector Type | Material Flammability Rating | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Color | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | 7.5 A | 15 | Thermoplastic Glass Filled | 2 | Grounding Indents | Brass | Gold | D-Sub | 0.406 in | 10.3 mm | Housing/Shell (Unthreaded) | 2 | Solder | Through Hole Right Angle | Signal | Male Pins Plug | UL94 V-0 | 300 VDC | 8 çin | 0.203 çm | -55 °C | 125 °C | Black | |
Amphenol ICC (Commercial Products) | 7.5 A | 15 | Thermoplastic Glass Filled | 2 | Grounding Indents | Brass | Gold | D-Sub | Housing/Shell (Unthreaded) | 2 | Screw | Free Hanging (In-Line) | Signal | Male Pins Plug | UL94 V-0 | 300 VDC | 8 çin | 0.203 çm | -55 °C | 125 °C | Black | 18 AWG | ||
Amphenol ICC (Commercial Products) | 7.5 A | 15 | Thermoplastic Glass Filled | 2 | Grounding Indents | Brass | Gold | D-Sub | Housing/Shell (Unthreaded) | 2 | Screw | Free Hanging (In-Line) | Signal | Male Pins Plug | UL94 V-0 | 300 VDC | 8 çin | 0.203 çm | -55 °C | 125 °C | Black | 18 AWG | ||
Amphenol ICC (Commercial Products) | 7.5 A | 15 | Thermoplastic Glass Filled | 2 | Grounding Indents | Brass | Gold | D-Sub | Housing/Shell (Unthreaded) | 2 | Solder | Through Hole | Signal | Male Pins Plug | UL94 V-0 | 300 VDC | 8 çin | 0.203 çm | -55 °C | 125 °C | Black | |||
Amphenol ICC (Commercial Products) | 7.5 A | 15 | Thermoplastic Glass Filled | 2 | Board Lock Grounding Indents | Brass | Gold | D-Sub | Housing/Shell (Unthreaded) | 2 | Solder | Through Hole | Signal | Male Pins Plug | UL94 V-0 | 300 VDC | 8 çin | 0.203 çm | -55 °C | 125 °C | Black | |||
Amphenol ICC (Commercial Products) | 7.5 A | 15 | Thermoplastic Glass Filled | 2 | Grounding Indents | Brass | Gold | D-Sub | Housing/Shell (Unthreaded) | 2 | Wire Wrap | Panel Mount Through Hole | Signal | Male Pins Plug | UL94 V-0 | 300 VDC | 8 çin | 0.203 çm | -55 °C | 125 °C | Black | |||
Amphenol ICC (Commercial Products) | 7.5 A | 15 | Thermoplastic Glass Filled | 2 | Board Lock Grounding Indents | Brass | Gold | D-Sub | Female Screwlock (4-40) Mating Side | 2 | Solder | Through Hole | Signal | Male Pins Plug | UL94 V-0 | 300 VDC | 8 çin | 0.203 çm | -55 °C | 125 °C | Black | |||
Amphenol ICC (Commercial Products) | 7.5 A | 15 | Thermoplastic Glass Filled | 2 | Grounding Indents | Brass | Gold | D-Sub | 0.406 in | 10.3 mm | Housing/Shell (Unthreaded) | 2 | Solder | Through Hole Right Angle | Signal | Male Pins Plug | UL94 V-0 | 300 VDC | 8 çin | 0.203 çm | -55 °C | 125 °C | Black | |
Amphenol ICC (Commercial Products) | 7.5 A | 15 | Thermoplastic Glass Filled | 2 | Grounding Indents | Brass | Gold | D-Sub | 0.319 in | 8.1 mm | Housing/Shell (Unthreaded) | 2 | Solder | Through Hole Right Angle | Signal | Male Pins Plug | UL94 V-0 | 300 VDC | 8 çin | 0.203 çm | -55 °C | 125 °C | Black | |
Amphenol ICC (Commercial Products) | 7.5 A | 15 | Thermoplastic Glass Filled | 2 | Grounding Indents | Brass | Gold | D-Sub | Female Screwlock (4-40) Mating Side | 2 | Solder | Through Hole | Signal | Male Pins Plug | UL94 V-0 | 300 VDC | 8 çin | 0.203 çm | -55 °C | 125 °C | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 13.65 | |
| 10 | $ 12.99 | |||
Description
General part information
L717DA15 Series
15 Position D-Sub Plug, Male Pins Connector
Documents
