PM20C03HBDN

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Technical Specifications

Parameters and characteristics for this part

Specification	PM20C03HBDN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Copper Zinc
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Polyethylene
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Termination	Solder

Part	Number of Positions Loaded	Number of Positions	Number of Rows	Fastening Type	Insulation Material	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Connector Type	Shrouding	Contact Material	Contact Finish Thickness - Mating	Termination	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Mating	Contact Length - Mating
METZ CONNECT USA Inc. PM20C03HBDN	All	6	2	Push-Pull	Polyethylene	0.079 in	2 mm	Gold	Male Pin	0.079 in	2 mm	Square	-40 °C	105 ░C	Black	Header	Unshrouded	Copper Zinc	Flash	Solder	Surface Mount Right Angle	0.079 in	2 mm	3.05 mm	0.12 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

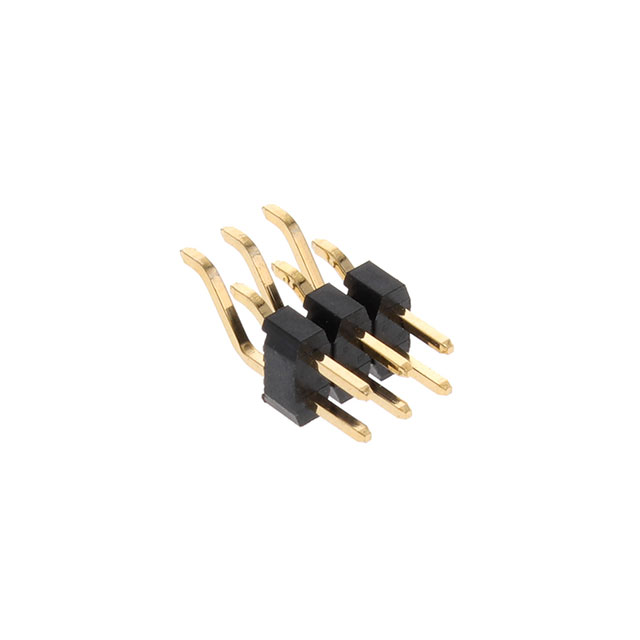

Connector Header Surface Mount, Right Angle 6 position 0.079" (2.00mm)
