WR9QD1000B9VNAIMR6B

Active

GlobTek, Inc.

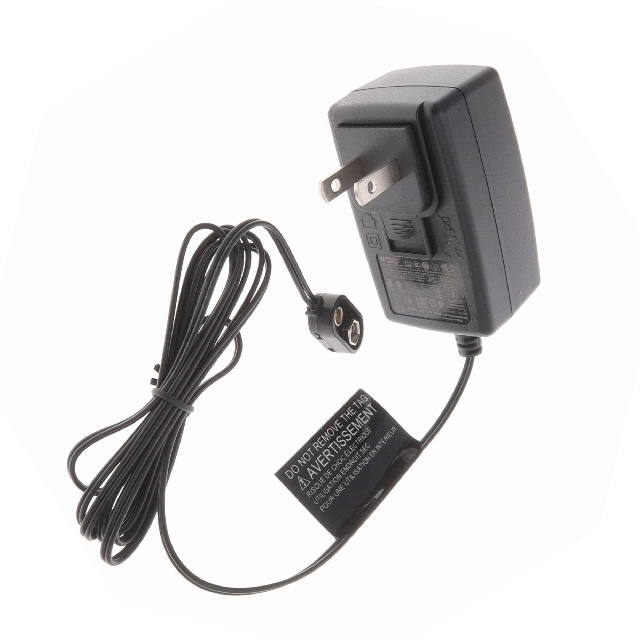

AC/DC WALL MOUNT ADAPTER 9V 9W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 9V 9W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QD1000B9VNAIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	UKRSepro, NOM, CCC, ETL, cETLus, LPS, BIS, EAC, UL, CB, S-Mark, VCCI, CE, PSE, RCM
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade (Included)
Input Type	Multi-Blade (Included)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	9V Contact
Power (Watts)	9 W
Region Utilized	International
Size / Dimension [x]	74 mm
Size / Dimension [x]	2.91 "
Size / Dimension [y]	43.5 mm
Size / Dimension [y]	1.71 in
Size / Dimension [z]	36.8 mm
Size / Dimension [z]	1.45 in
Standard Number	60601-1, 60335-1, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	9 V

Part	No Load Power Consumption [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Form	Region Utilized	Efficiency	Approval Agency	Voltage - Output	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Output Connector	Cord Length	Cord Length	Applications	Standard Number	Current - Output (Max) [Max]	Input Connector	Input Type
GlobTek, Inc. WR9QD1000B9VNAIMR6B	75 mW	-20 C	40 °C	90 VAC	264 VAC	Wall Mount (Class II)	International	CoC Tier 2 Level VI	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	9 V	9 W	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	9V Contact	1.5 m	59 in	Household Appliances ITE (Commercial) Medical	60335-1 60601-1 60950-1 62368-1	1 A	Multi-Blade (Included)	Multi-Blade (Included)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9V 9 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
