ASMT-CR00

Active

Broadcom Limited

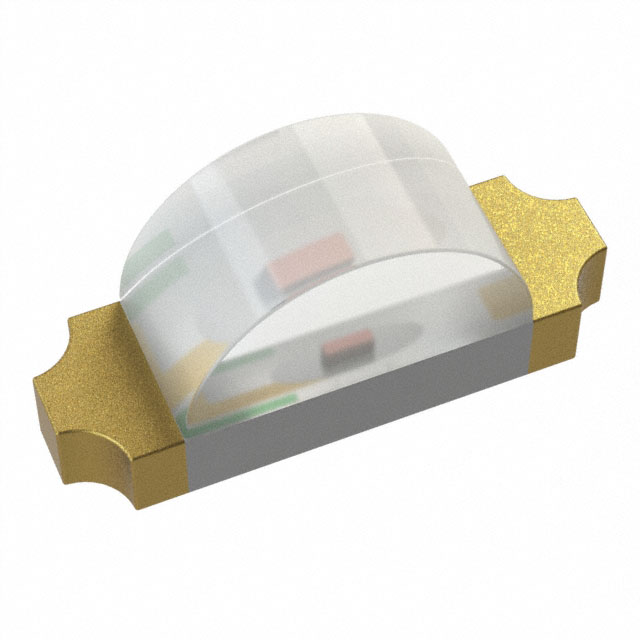

LED RED CLEAR CHIP SMD

Search across all available documentation for this part.

Active

Broadcom Limited

LED RED CLEAR CHIP SMD

Technical Specifications

Parameters and characteristics for this part

Part	Millicandela Rating	Lens Transparency	Wavelength - Dominant	Size / Dimension [x]	Size / Dimension [y]	Lens Color	Lens Size [y]	Lens Size [x]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Wavelength - Peak [custom]	Height (Max) [Max] [z]	Mounting Type	Color	Package / Case	Configuration	Supplier Device Package	Lens Style	Current - Test	Wavelength - Peak
Broadcom Limited ASMT-CB00	18 mcd	Clear	473 nm	1.6 mm	1 mm	Colorless	0.5 mm	1.2 mm	150 °	2.85 V	469 nm	0.45 mm	Surface Mount Right Angle	Blue	2-SMD No Lead	Standard	Chip LED	Rectangle with Domed Top	5 mA
Broadcom Limited ASMT-CG00				1.6 mm	0.8 mm				150 °				Surface Mount		0603 (1608 Metric)		Chip LED
Broadcom Limited ASMT-CR00	90 mcd	Clear	626 nm	1.6 mm	1 mm	Colorless	0.5 mm	1.2 mm	150 °	1.9 V		0.4 mm	Surface Mount	Red	2-SMD No Lead	Standard	Chip LED	Rectangle with Domed Top	20 mA	637 nm
Broadcom Limited ASMT-CA00	90 mcd	Clear	592 nm	1.6 mm	1 mm	Colorless	0.5 mm	1.2 mm	150 °	1.9 V		0.45 mm	Surface Mount Right Angle	Amber	2-SMD No Lead	Standard	Chip LED	Rectangle with Domed Top	20 mA	595 nm
Broadcom Limited ASMT-CW40	115 mcd	Diffused		1.6 mm	1 mm	White	0.3 mm	1.1 mm	150 °	2.9 V		0.3 mm	Surface Mount Right Angle	White	2-SMD No Lead	Standard	Chip LED	Rectangle with Flat Top	5 mA
Broadcom Limited ASMT-CW20	180 mcd			1.6 mm	0.8 mm		0.8 mm	1.6 mm	150 °	3 V		0.3 mm	Surface Mount	White	0603 (1608 Metric)	Standard	Chip LED	Rectangle with Flat Top	5 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red 626nm LED Indication - Discrete 1.9V 2-SMD, No Lead
