85_MCX-50-0-16/111_NE

Active

Huber+Suhner, Inc.

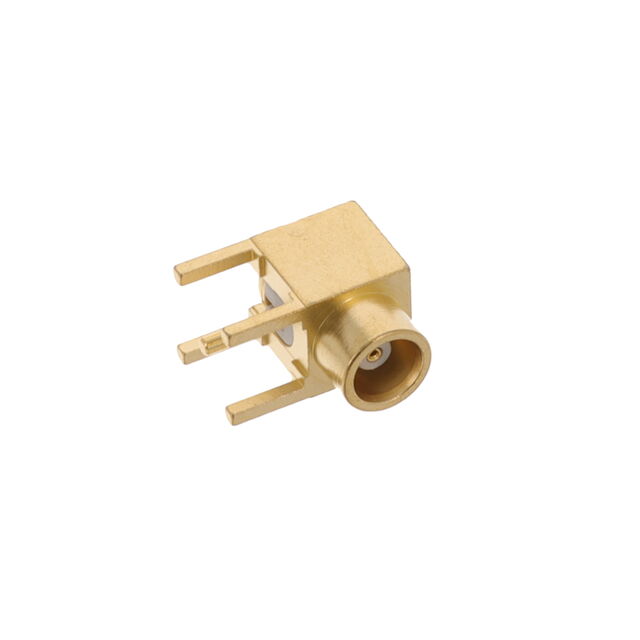

RF COAX CONN, MCX, R/A JACK, 50 OHM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

85_MCX-50-0-16/111_NE

Active

Huber+Suhner, Inc.

RF COAX CONN, MCX, R/A JACK, 50 OHM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	85_MCX-50-0-16/111_NE

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	170 V

85_MCX Series

Part	Number of Ports	Dielectric Material	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Connector Style	Impedance	Body Finish	Center Contact Plating	Housing Color	Connector Type	Body Material	Mating Cycles	Shield Termination	Mounting Type	Voltage Rating	Frequency - Max [Max]	Contact Termination
Huber+Suhner, Inc. 85_MCX-S50-0-25/111_NH	1	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	155 °C	-55 °C	Snap-On	MCX	50 Ohms	Gold	Gold	Gold	Female Socket Jack	Brass	500	Solder	Surface Mount Right Angle	170 V	6000 MHz	Solder
Huber+Suhner, Inc. 85_MCX-50-0-16/111_NM	1	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	155 °C	-55 °C	Snap-On	MCX	50 Ohms	Gold	Gold	Gold	Female Socket Jack	Brass	500	Solder	Through Hole Right Angle	170 V	6000 MHz	Solder
Huber+Suhner, Inc. 85_MCX-50-0-10/111_NH	1	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	155 °C	-55 °C	Snap-On	MCX	50 Ohms	Gold	Gold	Gold	Female Socket Jack	Brass	500	Solder	Through Hole Right Angle		6000 MHz	Solder
Huber+Suhner, Inc. 85_MCX-50-0-16/111_NH	1	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	155 °C	-55 °C	Snap-On	MCX	50 Ohms	Gold	Gold	Gold	Female Socket Jack	Brass	500	Solder	Through Hole Right Angle	170 V	6000 MHz	Solder
Huber+Suhner, Inc. 85_MCX-75-0-1/111_NH	1	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	165 °C	-65 ░C	Snap-On	MCX	75 Ohms	Gold	Gold	Gold	Female Socket Jack	Brass	500	Solder	Through Hole Right Angle	170 V	6000 MHz	Solder
Huber+Suhner, Inc. 85_MCX-50-0-16/111_NE	1	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	155 °C	-55 °C	Snap-On	MCX	50 Ohms	Gold	Gold	Gold	Female Socket Jack	Brass	500	Solder	Through Hole Right Angle	170 V	6000 MHz	Solder
Huber+Suhner, Inc. 85_MCX-50-0-10/111_NE
