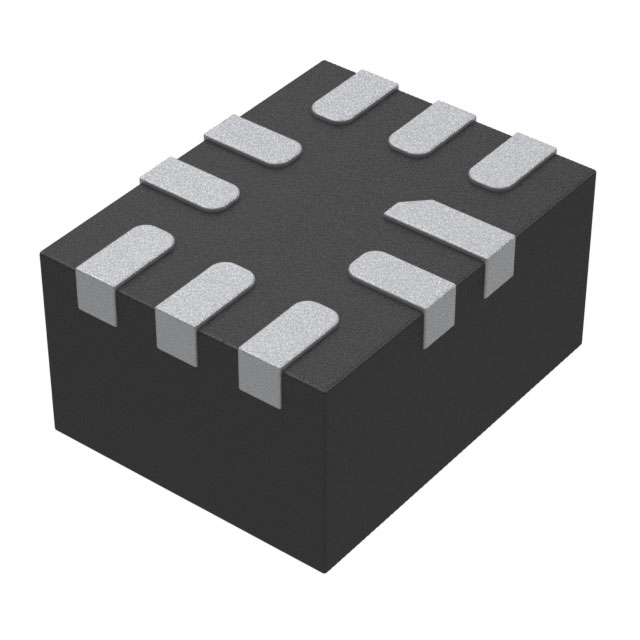

MP2736DQG-LF-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC SWITCH SPDT X 2 450MOHM 10QFN

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC SWITCH SPDT X 2 450MOHM 10QFN

Technical Specifications

Parameters and characteristics for this part

Specification	MP2736DQG-LF-Z

-3db Bandwidth	50 MHz
Channel Capacitance (CS(off), CD(off)) [custom]	55 pF
Channel Capacitance (CS(off), CD(off)) [custom]	55 pF
Channel-to-Channel Matching (ΔRon)	10 mOhm
Crosstalk	-70 dB
Current - Leakage (IS(off)) (Max)	40 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max) [Max]	450 mOhm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-VFQFN
Supplier Device Package	10-QFN (1.4x1.8)
Switch Circuit	SPDT
Switch Time (Ton, Toff) (Max) [Max] [custom]	30 ns
Switch Time (Ton, Toff) (Max) [Max] [custom]	36 ns
Voltage - Supply, Single (V+) [Max]	5.5 V
Voltage - Supply, Single (V+) [Min]	1.65 V

Part	On-State Resistance (Max) [Max]	Switch Circuit	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Multiplexer/Demultiplexer Circuit	Channel-to-Channel Matching (ΔRon)	Crosstalk	Number of Circuits	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Switch Time (Ton, Toff) (Max) [Max] [custom]	Switch Time (Ton, Toff) (Max) [Max] [custom]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Leakage (IS(off)) (Max)	Package / Case	Supplier Device Package	-3db Bandwidth
MONOLITHIC POWER SYSTEMS (MPS) MP2736DQG-LF-Z	450 mOhm	SPDT	1.65 V	5.5 V	2:1	10 mOhm	-70 dB	2	55 pF	55 pF	30 ns	36 ns	Surface Mount	85 °C	-40 °C	40 nA	10-VFQFN	10-QFN (1.4x1.8)	50 MHz
MONOLITHIC POWER SYSTEMS (MPS) MP2736DQG-LF-P	450 mOhm	SPDT	1.65 V	5.5 V	2:1	10 mOhm	-70 dB	2	55 pF	55 pF	30 ns	36 ns	Surface Mount	85 °C	-40 °C	40 nA	10-VFQFN	10-QFN (1.4x1.8)	50 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.10

General part information

2 Circuit IC Switch 2:1 450mOhm 10-QFN (1.4x1.8)
