TRAPC3MSX
ActiveSwitchcraft Inc.

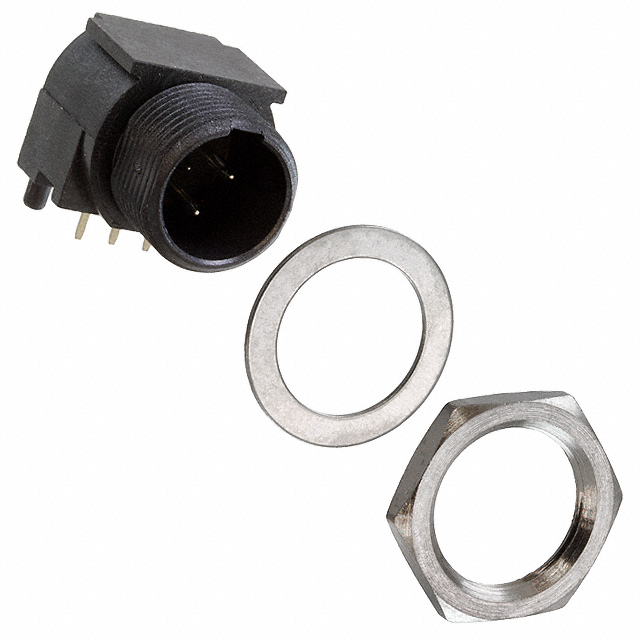

CONN RCPT MALE MINI XLR 3P SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TRAPC3MSX
ActiveSwitchcraft Inc.
CONN RCPT MALE MINI XLR 3P SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TRAPC3MSX |
|---|---|
| Applications | Medical, Testing Equipment & Measurement, Audio |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Material | Brass |
| Current Rating (Amps) | 5 A |
| Fastening Type | Latch Lock |
| Features | Board Guide |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | Mini XLR |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.28 | |
| 10 | $ 10.00 | |||
| 25 | $ 9.61 | |||
| 50 | $ 9.23 | |||
| 100 | $ 8.72 | |||
| 250 | $ 7.95 | |||
| 500 | $ 7.91 | |||
Description
General part information
TRAPC3 Series
3 Position Circular Connector Receptacle, Male Pins Solder
